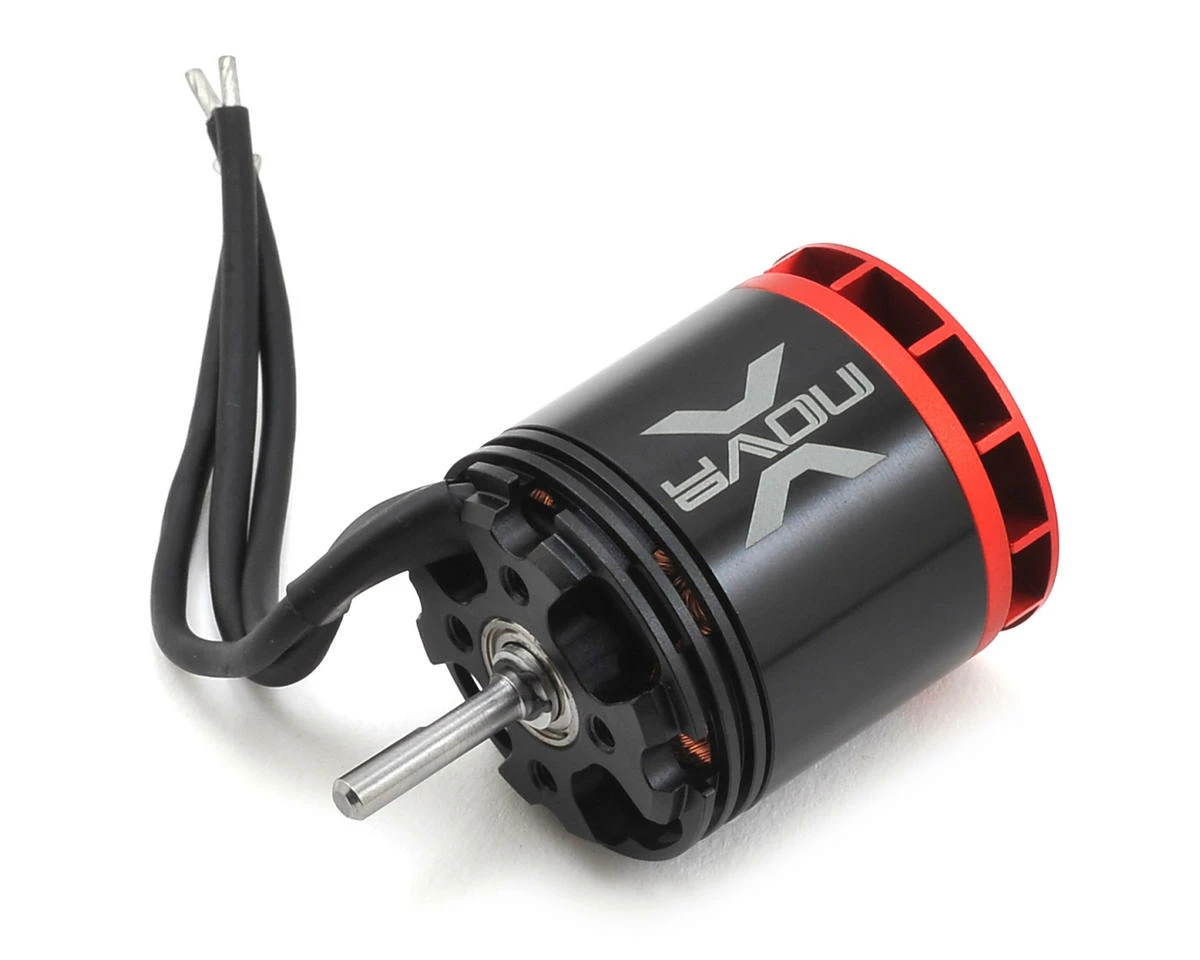

Xnova XTS 2618-1360KV Brushless Motor (Shaft A)

This is the Xnova XTS 2618-1360KV HP Brushless Motor. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 2618 models are specially designed for the helicopters which swing 325-380mm main blades on 6s LiPo to provide the highest power to weight ratio for hard 3D flying and long flight times. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.

Features:

• Designed for 3D flying and long flight times
• Developed 325-380mm helis on 6s LiPo
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 90%
• Cooler running
• Superb quality and machining of CNC parts
• Handwound single strand wire

Specifications:
Slots & Poles: 12n10p
Winding T: 13D
rpm/V: 1360
Volt (V): 10 / 22.2
Io(A): 1.6 / 3.0
Rm (mohm): 25
Weight (without connector): 108g
Body Length (no shaft): 38.1mm
Diameter: 33mm
Shaft Length: 17.4mm
Shaft Dia.: 3.5mm
Mounting Holes CTC Distance: 19*2 & 16*2
Mounting Screw: M3x0.5
Max Eff. Curr.: 25.30 / 51.61
Max Eff.: 87.35 / 88.38
Kt (Nm/A): 0.007
Km (Nm/sqrt(w)): 0.0444
Max Continuous Power(Watts): 720
Peak Continuous Power(Watts) (2 sec): 960
Max Continuous Current(Amps): 36
