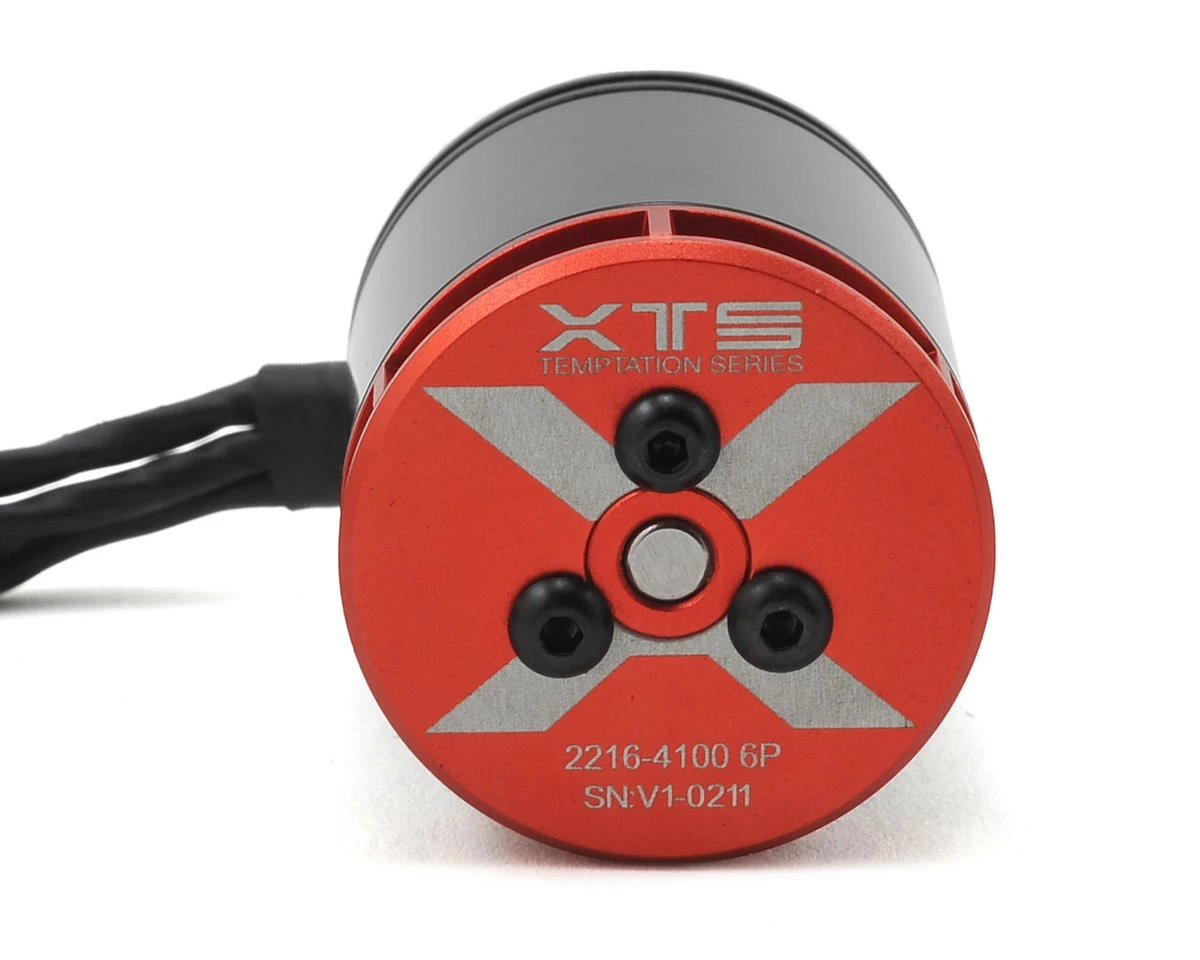

Xnova XTS 2216-4100KV Brushless Motor

This is the Xnova XTS 2216-4100KV Brushless Motor. The Xnova XTS series motors are developed and optimized for pure performance. The Xnova XTS series 2216 models are specially designed for the Oxy 3 family of helicopters to provide the highest power to weight ratio for hard 3D flying on 3s-4s LiPo. All XTS motors are 100% hand-wound and each motor runs through a complete quality control test before shipping.

Features:

• Designed for 3D flying
• Developed for Oxy 3 family of helicopters on 3s-4s LiPo
• High quality Neo Magnets, heat resistant up to 150 degree C
• Specialized wires, heat resistance up to 250 degree C
• Precise balanced
• High performance stator metal sheet
• High quality NMB bearings
• Marked leading high efficiency up to 90%
• Cooler running
• Superb quality and machining of CNC parts
• Handwound single strand wire

Specifications:
Slots & Poles: 9x6p
Winding T: D
rpm/V: 4100
Volt (V): 15 | 25
Io(A): 4.2 | 5.8
Rm (mohm): 15
Weight (without connector): 77g
Body Length (no shaft): 33.8mm
Diameter: 28.5mm
Shaft Length: 14.5mm
Shaft Dia.: 3.17
Mounting Holes CTC Distance: 16 x 4mm
Mounting Screw: M3x0.5
Max Eff. Curr.: 52.92 | 76.16
Max Eff.: 84.13 | 84.77
Kt (Nm/A): 0.0023
Km (Nm/sqrt(w)): 0.0190
Max Continuous Power(Watts): 580
Max Continuous Current(Amps): 36
