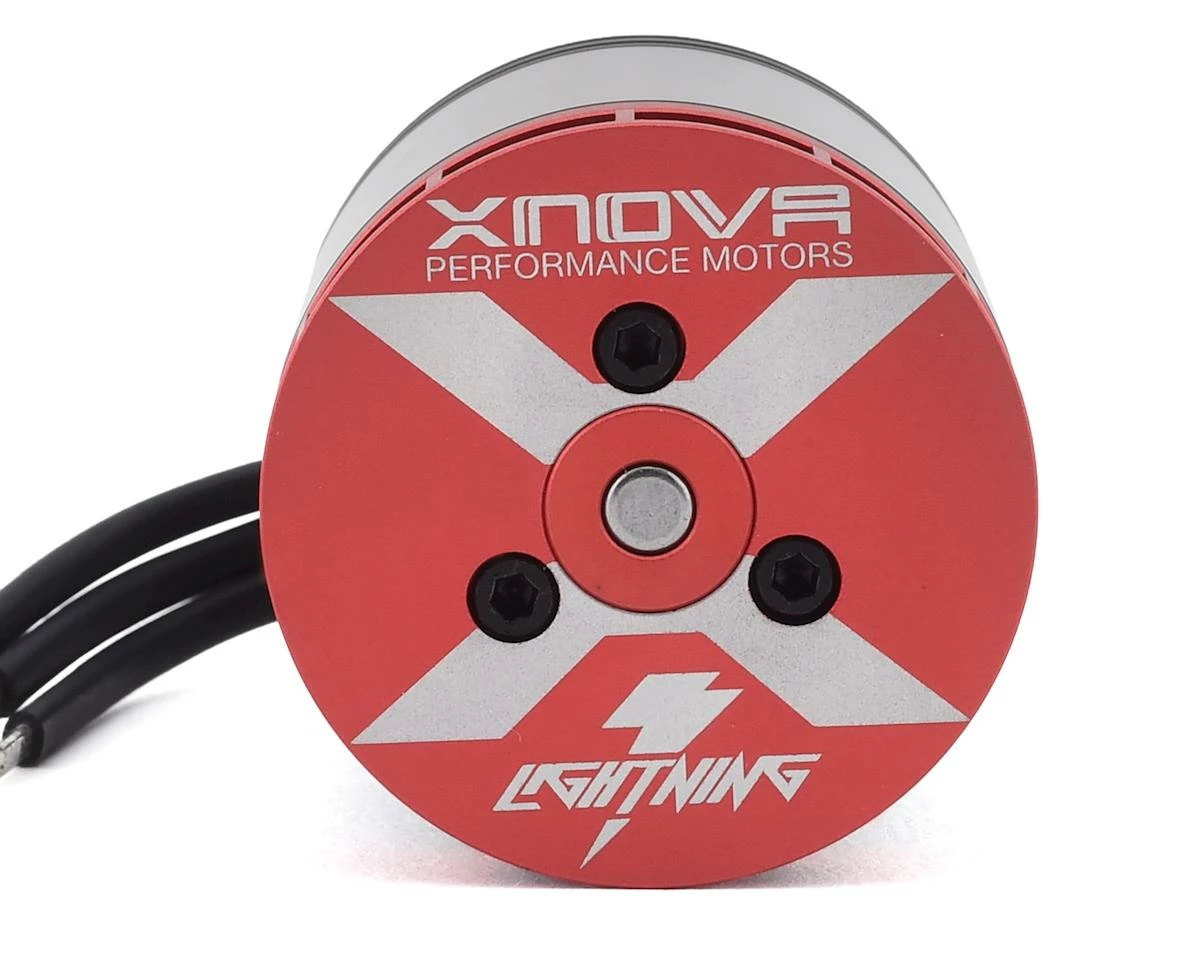

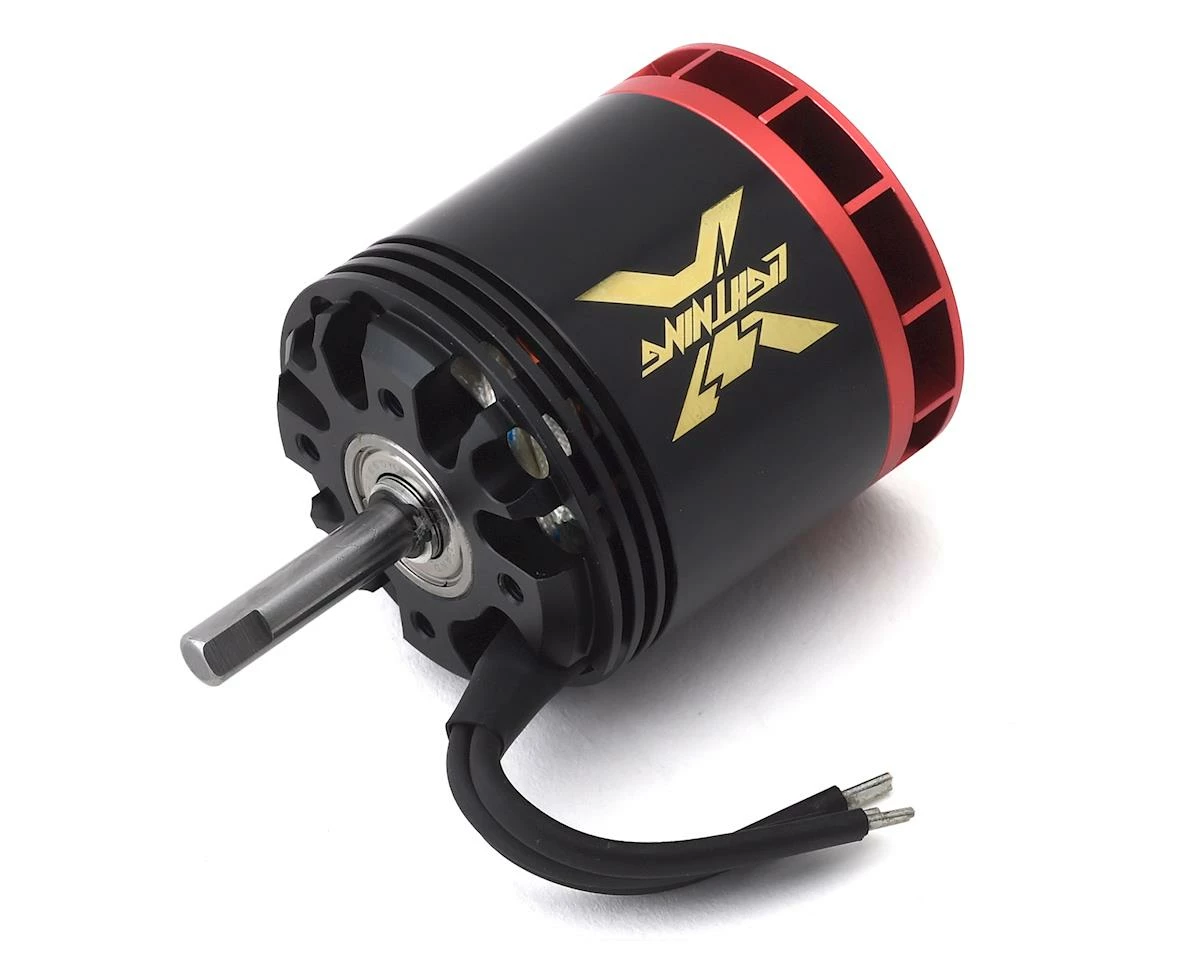

Xnova “Lightning” 3220-950KV Brushless Motor (950Kv)

This is the Xnova “Lightning” 3220-950KV Brushless Motor, an updated powerhouse of a motor for your heli needs. Any helicopter asking for insane power swinging 380-420mm blades will be more than happy with this masterpiece. The Xnova lightning series is the highest level of motor performance for your buck.

• Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature
• Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C
• New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance
• 100% handwound

Slots & Poles: 12n10p

Winding T: YY

rpm/V: 945

Volt (V): 10 / 22.2

Io(A): 1.8 / 3.0

Rm (mohm): 18 / 18

Weight (without connector): 200g

Body Length (no shaft): 45mm

Diameter: 40.5mm

Shaft Length: 22mm

Shaft Dia.: 5mm

Mounting Holes CTC Distance: 25mm

Mounting Screw: M3x0.5

Max Eff. Curr.: 31.62 / 60.83

Max Eff.: 88.62 / 90.14

Kt (Nm/A): 0.0101

Km (Nm/sqrt(w)): 0.0749

Max Continuous Power(Watts): 1450

Peak Continuous Power(Watts) (2 sec): 1900

Max Continuous Current(Amps): 66
