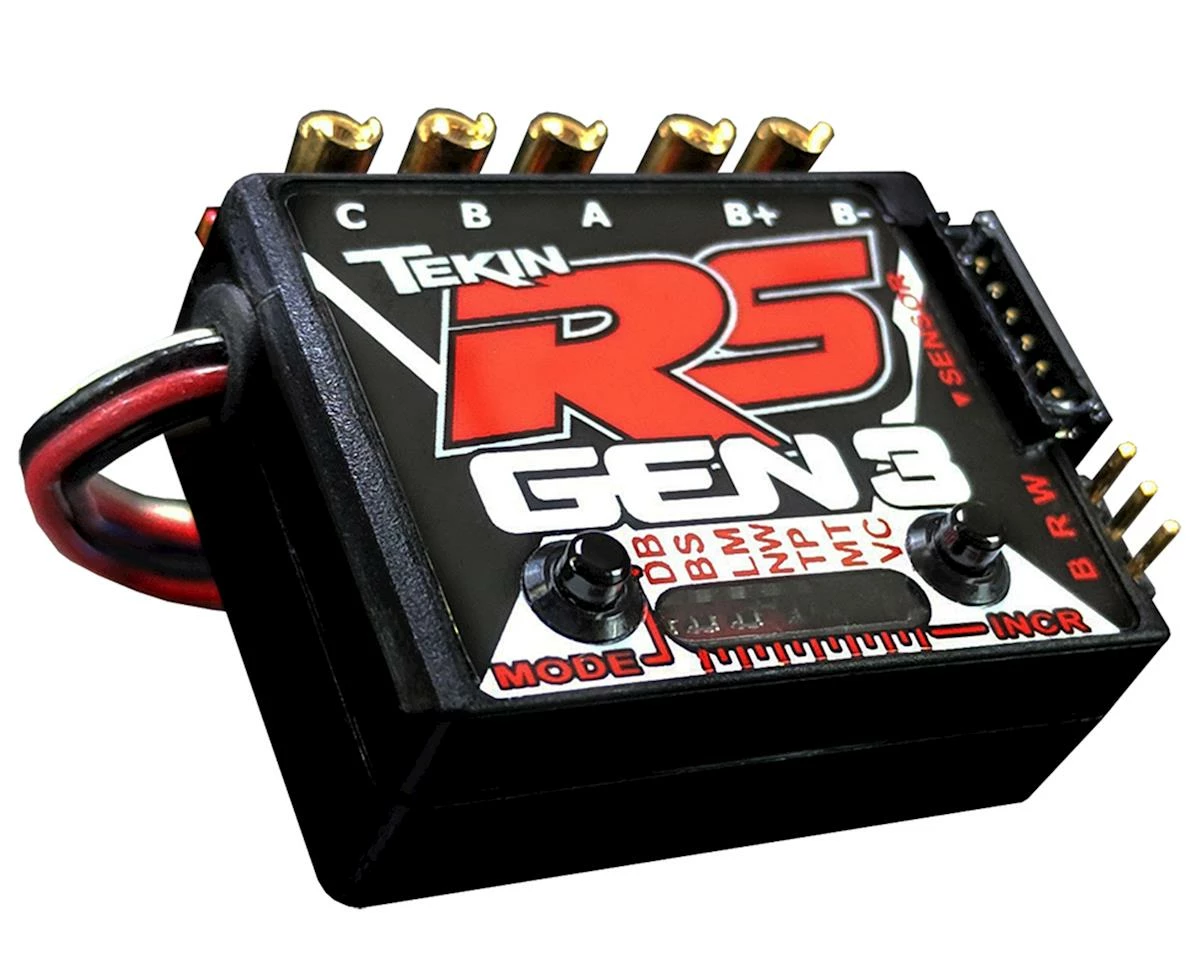

TEKIN RS Gen3 Sensored Brushless ESC

The Tekin RS Gen3 Sensored Brushless ESC brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 gives you the tools to win!

• QuickTune™ One Touch Programming
• New HD Solder Post Design
• 3rd Channel Input for On-The-Fly Drag Brake Adjustments
• Adjustable Torque Control *
• Adjustable Throttle and Brake Frequencies *
• High Voltage Programmable BEC *
• HotWire™ Programming Port *
• Data Logging Capability *
• Sensor Checker
• On-Board Temperature Indicator
• ESC Self Diagnostics with Error Codes
• Fully Proportional Forward/Brake/Reverse
• Brushless and Brushed Motor Drive
• Sensored or Sensorless Operation
• LiPo Safe with Custom Voltage Cutoffs
• Sensor Plug for Precise Commutation
• Lightweight Chassis Design
• HDAC: High Density Copper PCB’s
• Ultra-smooth and Precise Throttle and Braking Control

Specifications:

Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD

Motor Limit Brushless Mode: 2S – 8.5T 2-pole 36mm Can, 3S – 10.5T 2-pole 36mm Can

Motor Limit Brushed Mode: 2S – 10T 36mm Can, 3S – 20T 36mm Can

Max Current: 140amps per phase*

BEC: 6.0v / 7.4v @ 5.5amps

Dimensions: 1.0 x 1.3 x .51″ / 24.5 x 34 x 12.9mm

Weight: .83oz / 23.5g
