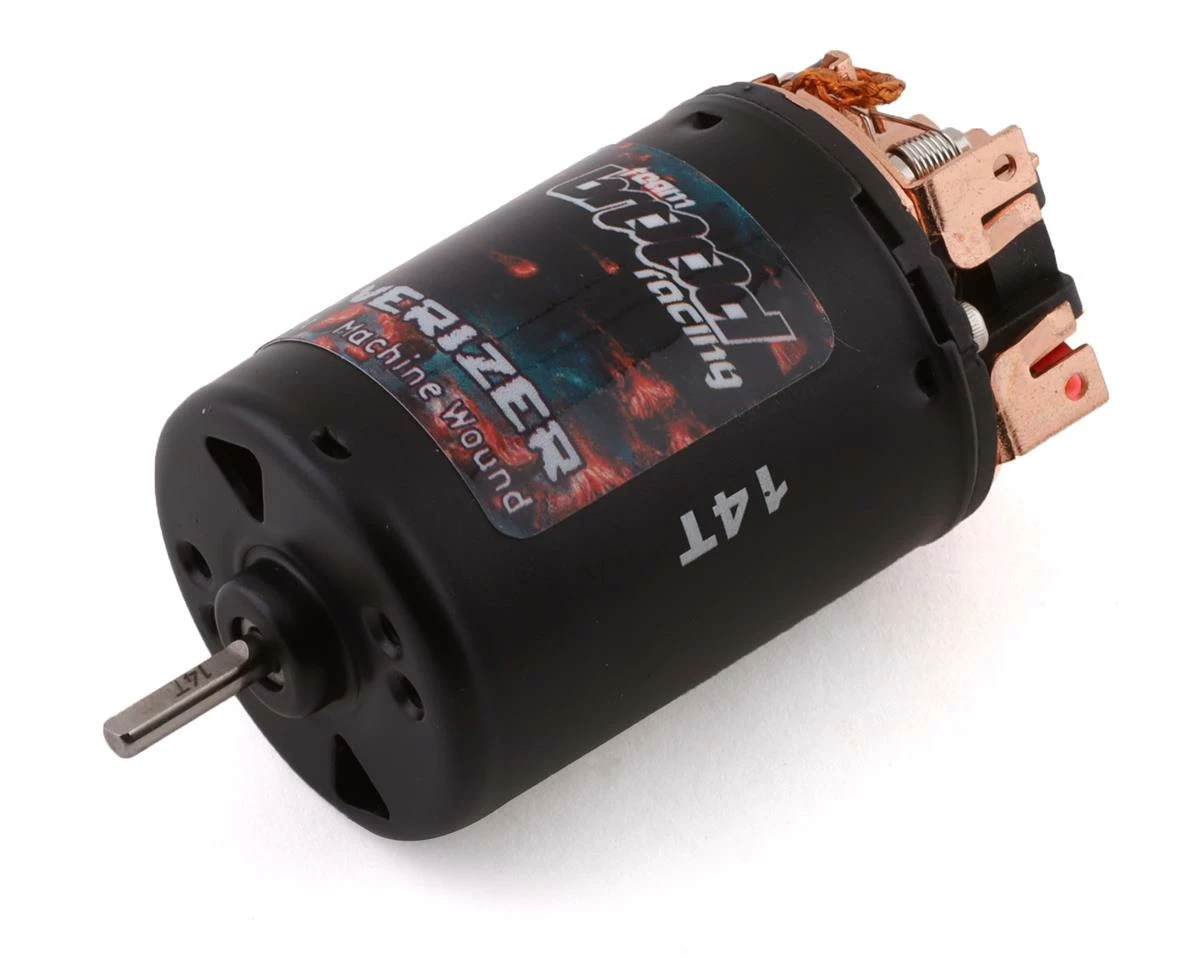

Team Brood Pulverizer Machine Wound 3 Slot Dual Magnet 550 Crawler Motor (14T)

The Team Brood Pulverizer 550 3-Slot Machine Wound Brushed Motor is a great choice for budget conscious crawlers that want the benefits of a larger can 550 motor that has been disassembled, spec’d and prepped. Pulverizer series motors have been built using a strict assembly process that includes hand shimming the armature and precision brush hood alignment, and is then finished off with a low impact break in and dyno test to ensure that each motor meets strict criteria. This is done to extract all the power from this machined wound option, and provide enthusiasts with a higher quality choice when compared to standard machine wound motors.

Features:

• Dual Magnet Can: C6 magnets maximize torque and brake strength
• Adjustable Timing: Fine tune the motors powerband to optimal settings
• Rebuildable: Can be rebuilt to provide maximum power and longevity
• Dual Precision Ball Bearings: Reduces friction provides increased efficiency and power
• Aluminum Heatsinks: Additional cooling provides for a more efficient motor
• Standup Brushes: Long lasting performance
• Springs: Optimal Tension Springs
• Machine Wound Armature: Delivers consistent and reliable performance, at a more affordable price
• Warranty: 30 Day Limited through manufacturer

Build Features:

• Cleaned and Lubed Bearings: Allows for the smoothest operation
• Precision-Spaced Armature: Centers the Armature in the magnetic field with minimal play
• Precision-Measured Springs: Assures both springs are at the optimal tension
• Aligned Brush Hoods: Allows the brushes to make full contact allowing even wear and max power
• Tested: Each component is tested on precision calibrated equipment
• Fully Broken-In: Ready to install and run when you pull it out of the box

Specifications:

• Motor:
• Poles: 2
• Magnets: Dual C6
• Brush Style: Standup
• Voltage Input: 3.7v-14.8v
• Break-In: 300 seconds at 3 volts, 30 seconds at 3.5 volts
• Armature:
• Construction: Machine wound
• Lamination Size: .014″
• Stack Design: Straight
• Slots: 3
• Wire Type: Copper Round
• Balance Type: Drill
• Turns: 14T
• Motor Dimensions:
• Weight: 8 ounces
• Length: 63mm (2.48″)
• Diameter: 35.85mm (1.41″)
• Shaft Size: 3.175mm (1/8th)
• Mounting Pattern: Standard 540/550 M3x25mm

This product was added to our catalog on March 9, 2021
