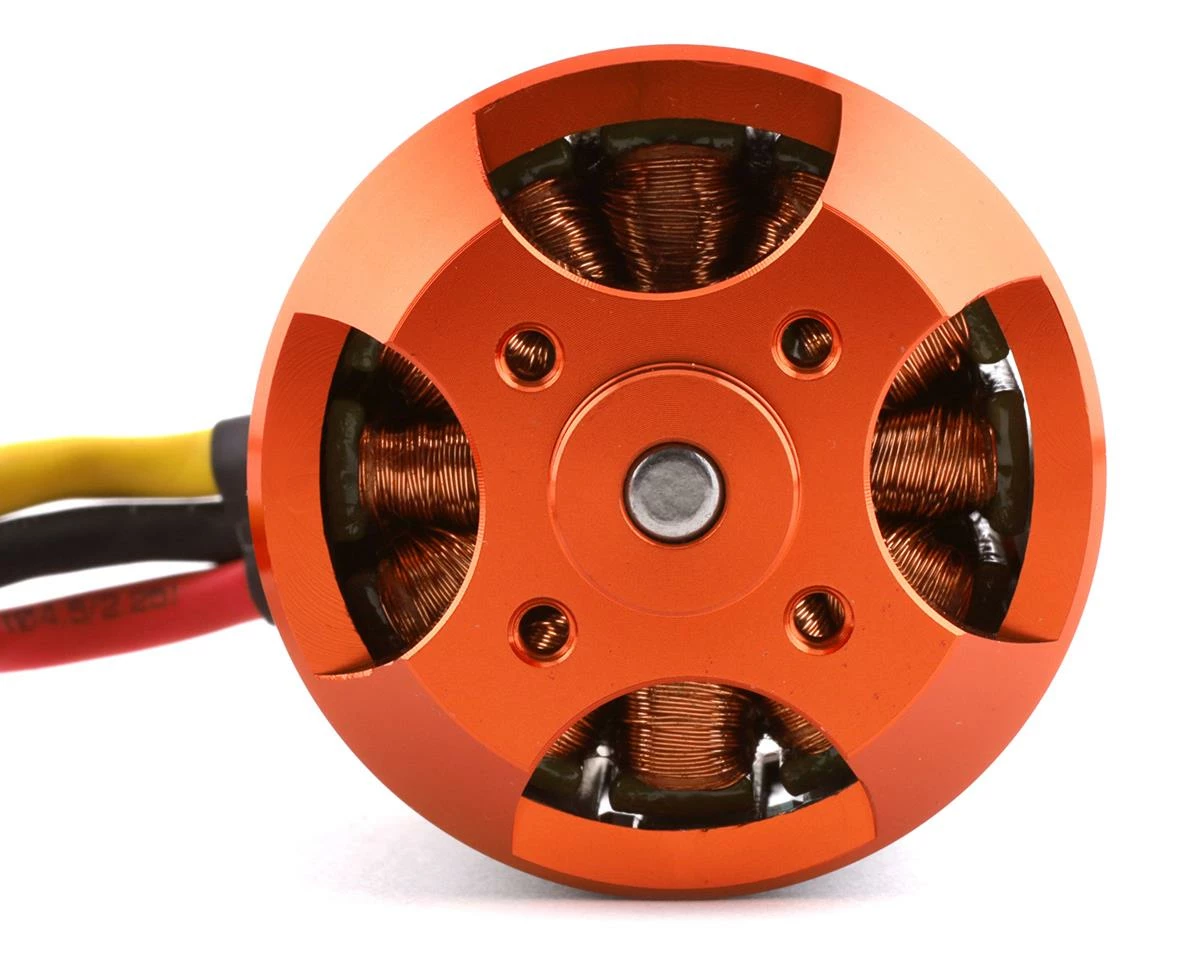

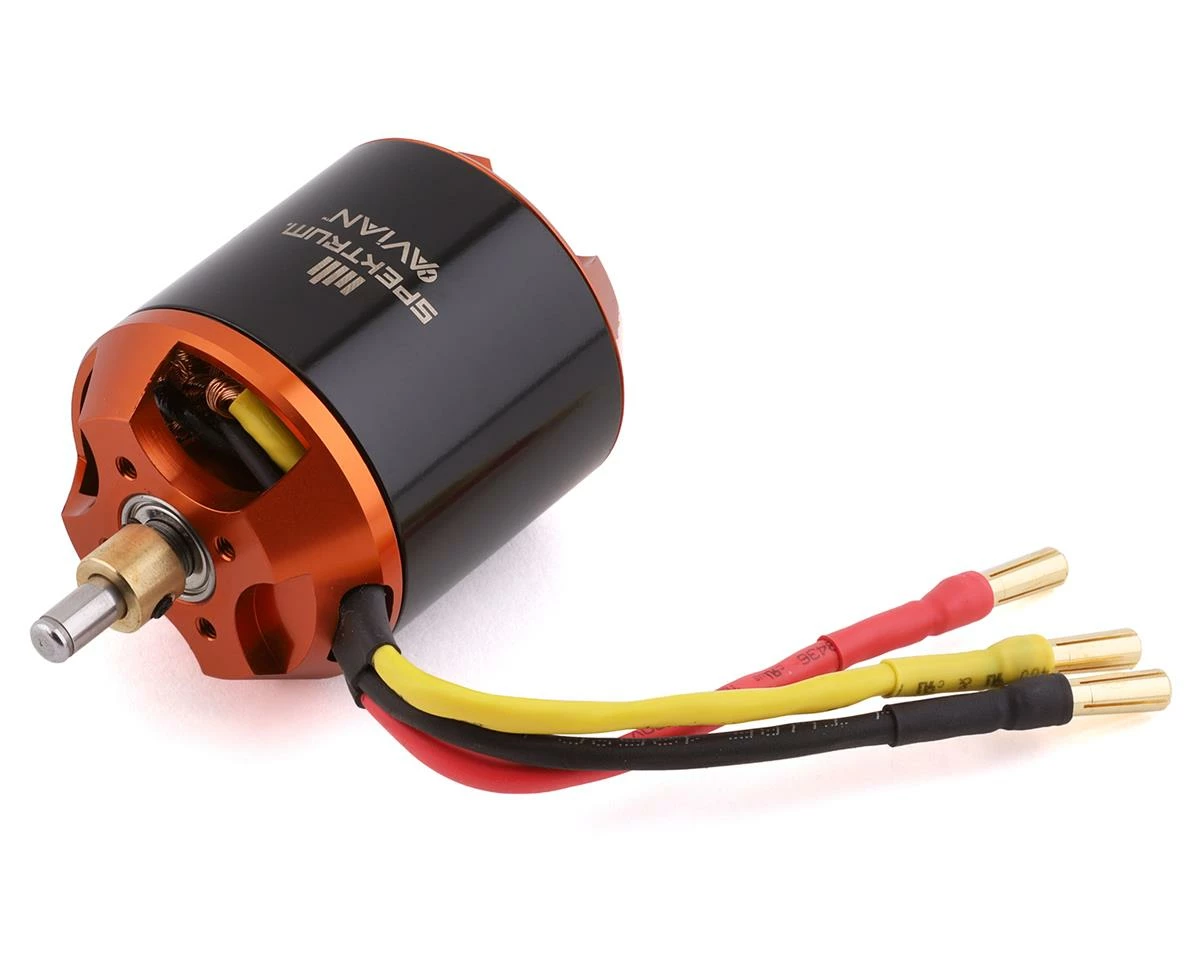

Spektrum RC Avian 4260 Brushless Outrunner Motor (480Kv)

The Spektrum Avian 4260 – 480Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

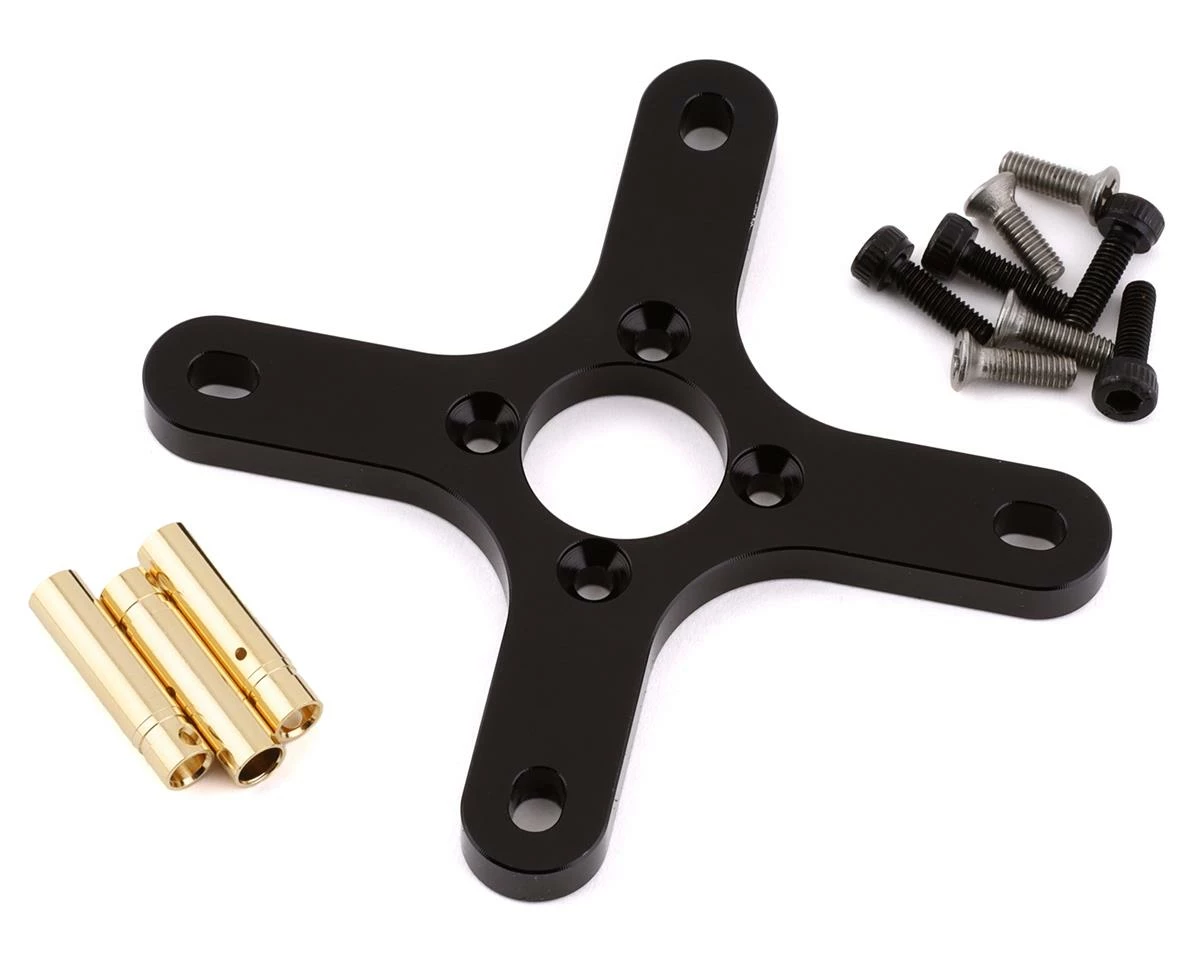

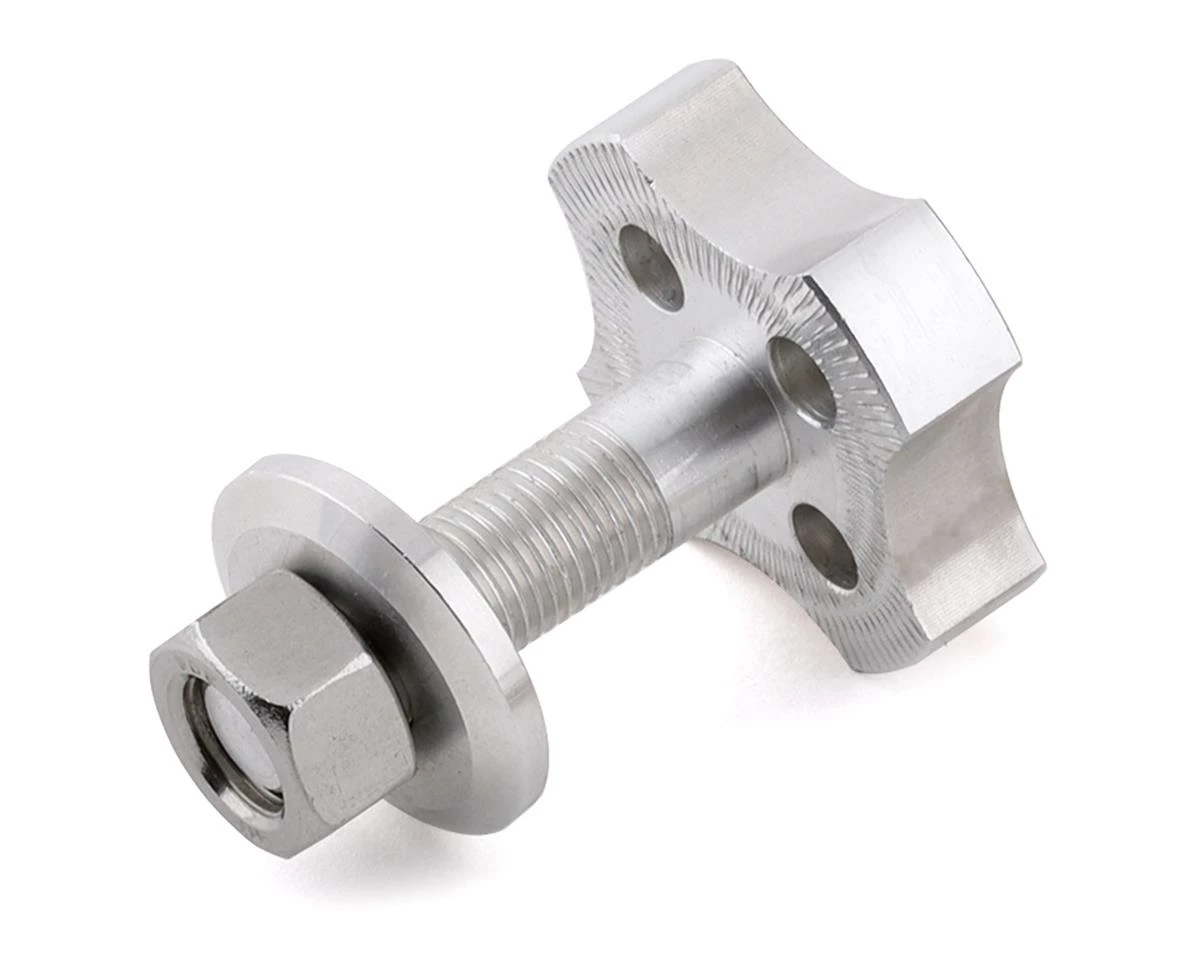

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 60 amp ESC
• Perfect electric conversion upgrade for .55 size glow combustion power systems

Specifications:
Adjustable Timing: No
Application: Sport airplanes up to 9.5lbs (4310g) and 3D airplanes up to 6lbs (2720g)
Connector Type: 4mm Bullet
Input Voltage: 18.5-22.2V (5-6S LiPo)

Constant Watts: 810W
Burst Watts: 1350W
Motor Type: Brushless – Outrunner
Outer Diameter: 1.7″ (43 mm)
Product Length: 2.4″ (61 mm)
Product Weight: 9.5oz (268g)
Recommended Prop Range: 13x10E – 15x8E
RPM/Volt (Kv): 480
Shaft Diameter: 0.2″ (5 mm)
Shaft Length: 0.67″ (17 mm)

This product was added to our catalog on March 16, 2022
