Spektrum RC Avian 3536 Brushless Outrunner Motor (1200Kv)

The Spektrum Avian 3536 – 1200Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

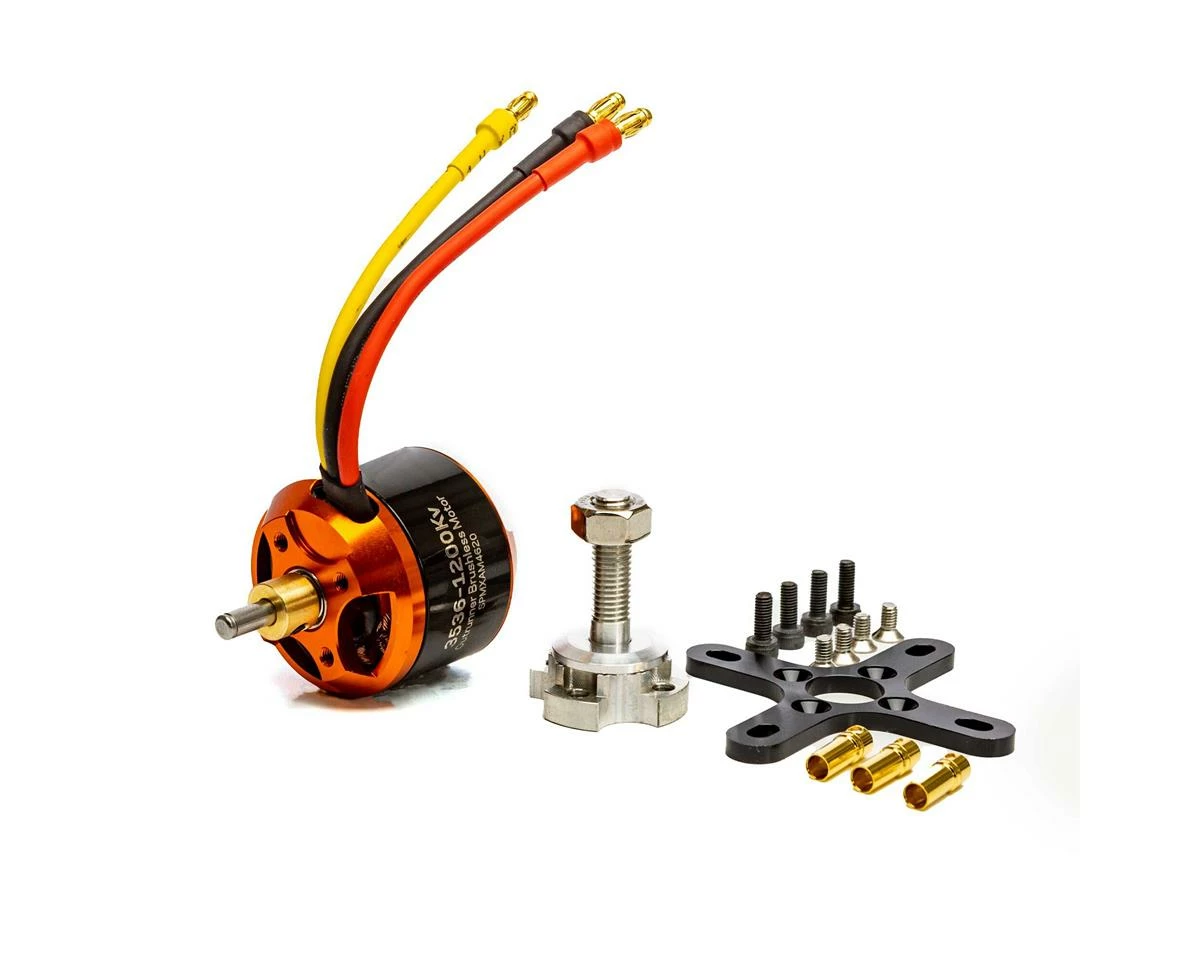

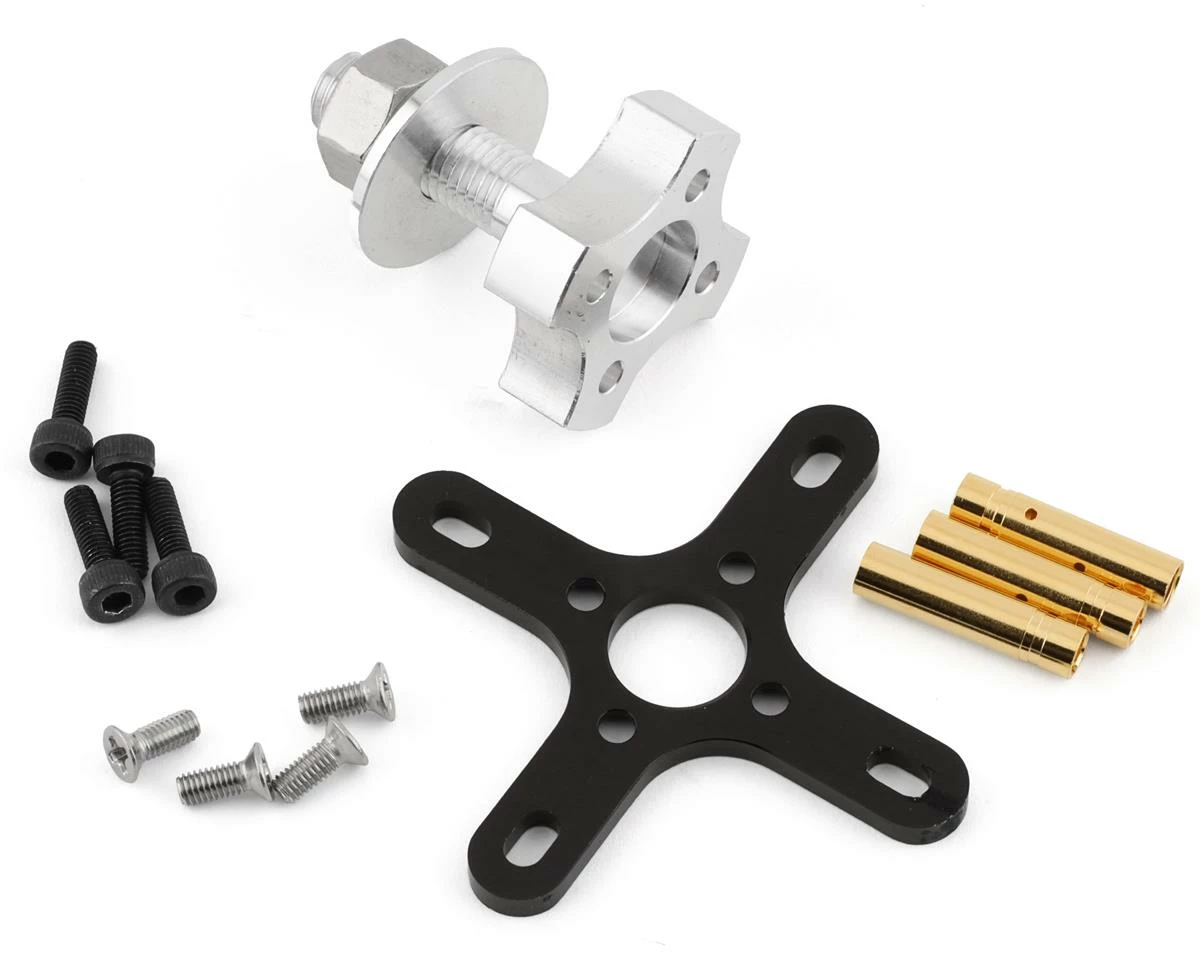

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 45 amp ESC
• Perfect electric conversion upgrade for .15 size glow combustion power systems

RPM/Volt (Kv): 1200

Application: Sport airplanes up to 4lbs (1815g) and 3D airplanes up to 2.5lbs (1135g)

Recommended Prop Range: 10×7 to 11×7 Electric Prop

Adjustable Timing: No

Connector Type: 3.5mm Bullet

Input Voltage: 11.1-14.8V (3-4S)

Maximum Burst Current: 45A

Maximum Continuous Current: 35A

Constant Watts: 500W

Burst Watts: 650W

Motor Type: Brushless – Outrunner

Number of Poles: 14

Outer Diameter: 1.4″ (35mm)

Product Length: 1.4″ (36 mm)

Product Weight: 3.6oz (102g)

Recommended Speed Control: 45A

Shaft Diameter: 0.16″ (4 mm)

Shaft Length: 1.42″ (36 mm)
