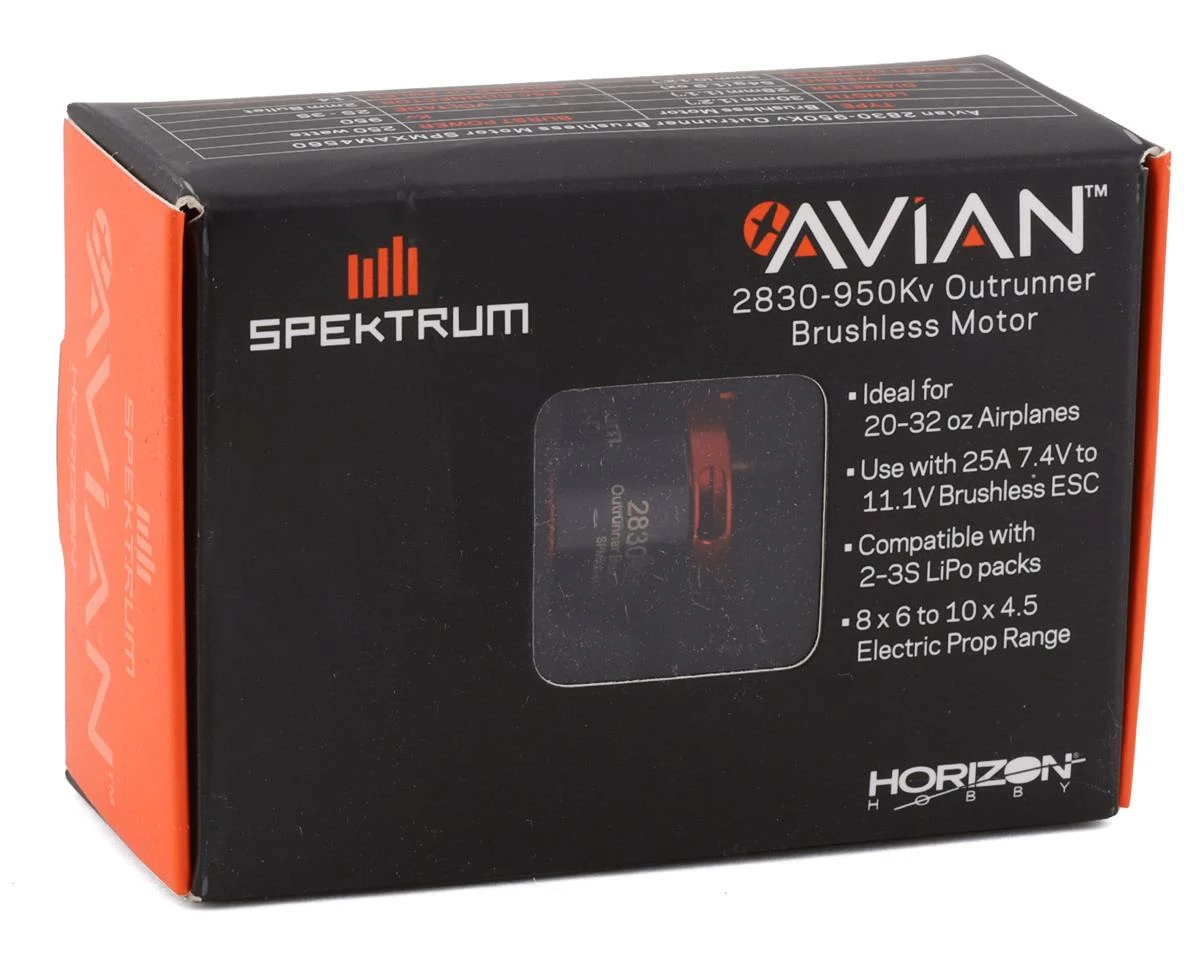

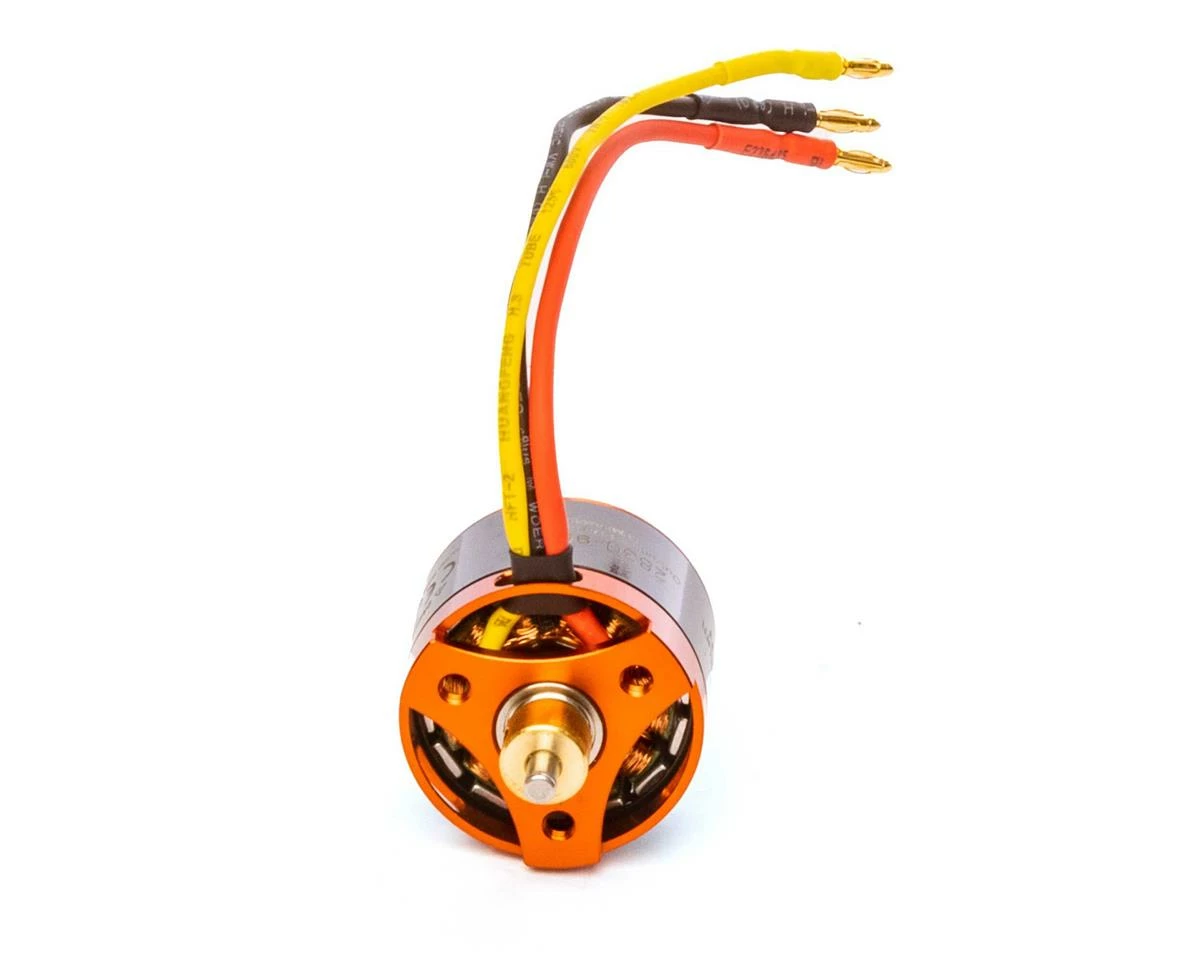

Spektrum RC Avian 2830 Brushless Outrunner Motor (950Kv)

The Spektrum Avian 2830 – 950Kv Brushless Outrunner Motor offers a combination of superior performance, high reliability and user-friendly features that make it an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!

Benefits

• Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
• Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
• Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.

Features:

• Lightweight design
• Powerful and durable Rare-Earth Neodymium magnets
• 14-pole stator for smooth and precise propulsion

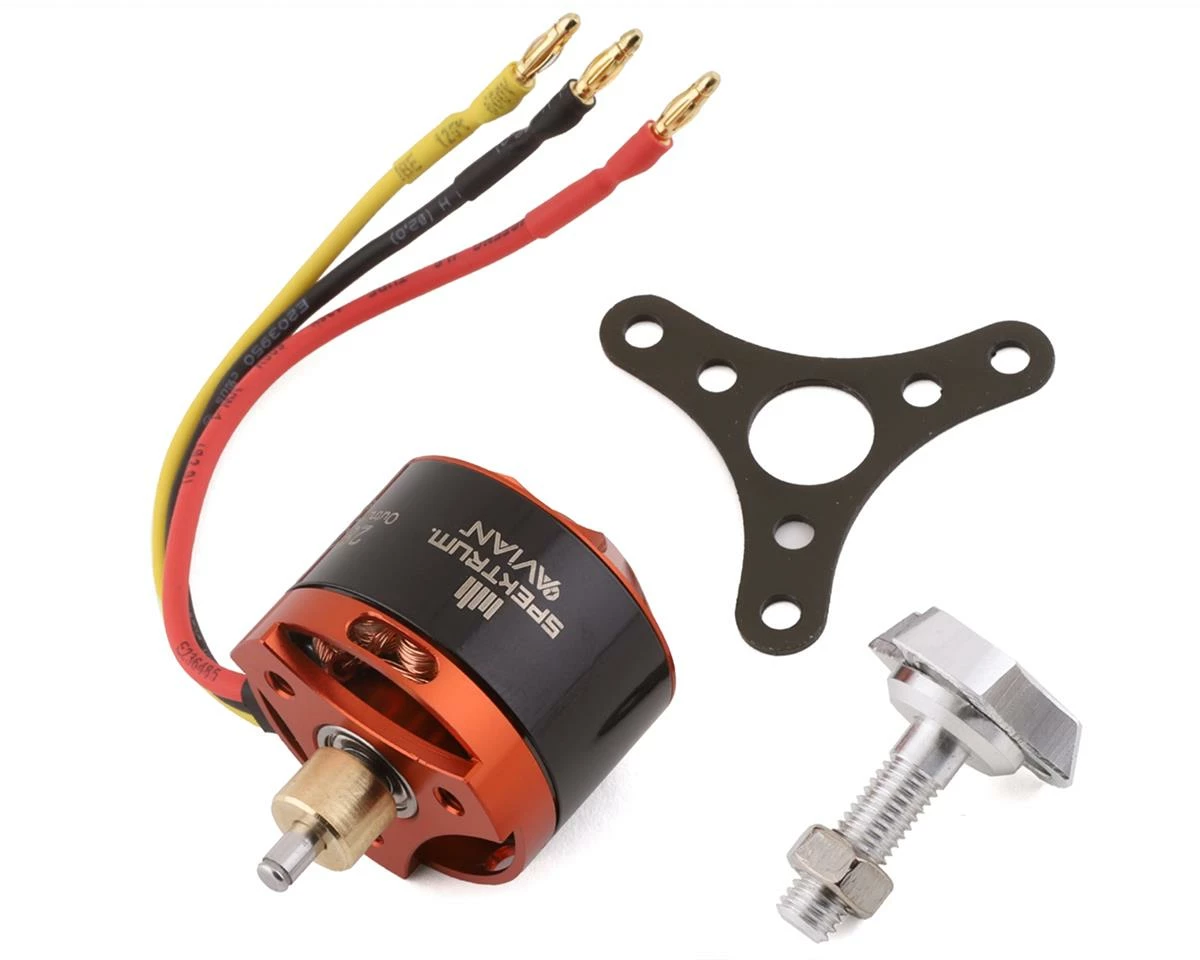

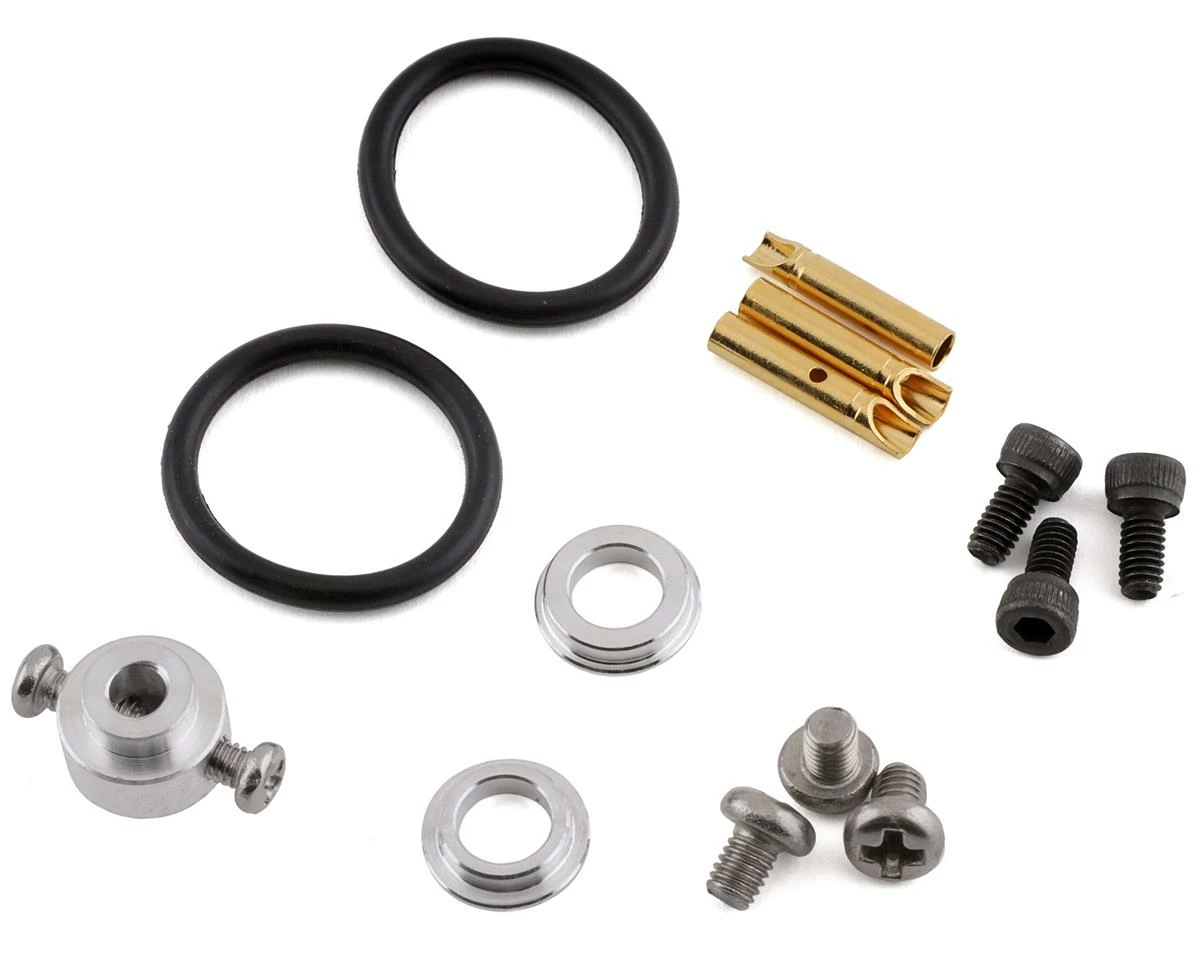

• Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
• Perfect match for the Spektrum Smart Avian 30 amp ESC

Specifications:
Application: For Sport airplanes up to 32oz (905g) and 3D airplanes up to 20oz (565g)
Connector Type: 2mm Bullet
Input Voltage: 7.4-11.1V (2-3S LiPo)

Constant Watts: 160W
Burst Watts: 250W
Motor Type: Brushless – Outrunner
Number of Poles: 14
Outer Diameter: 1.1″ (28 mm)
Product Length: 1.18″ (30 mm)
Product Weight: 1.91oz (54g)
Recommended Prop Range: 8×6 – 10×4.5 slow fly
RPM/Volt (Kv): 950 rpm/V
Shaft Diameter: 0.12″ (3 mm)
Shaft Length: 0.47″ (12 mm)
Voltage: 7.4-11.1V / 2-3S

This product was added to our catalog on March 16, 2022
