Reefs RC Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo (High Voltage)

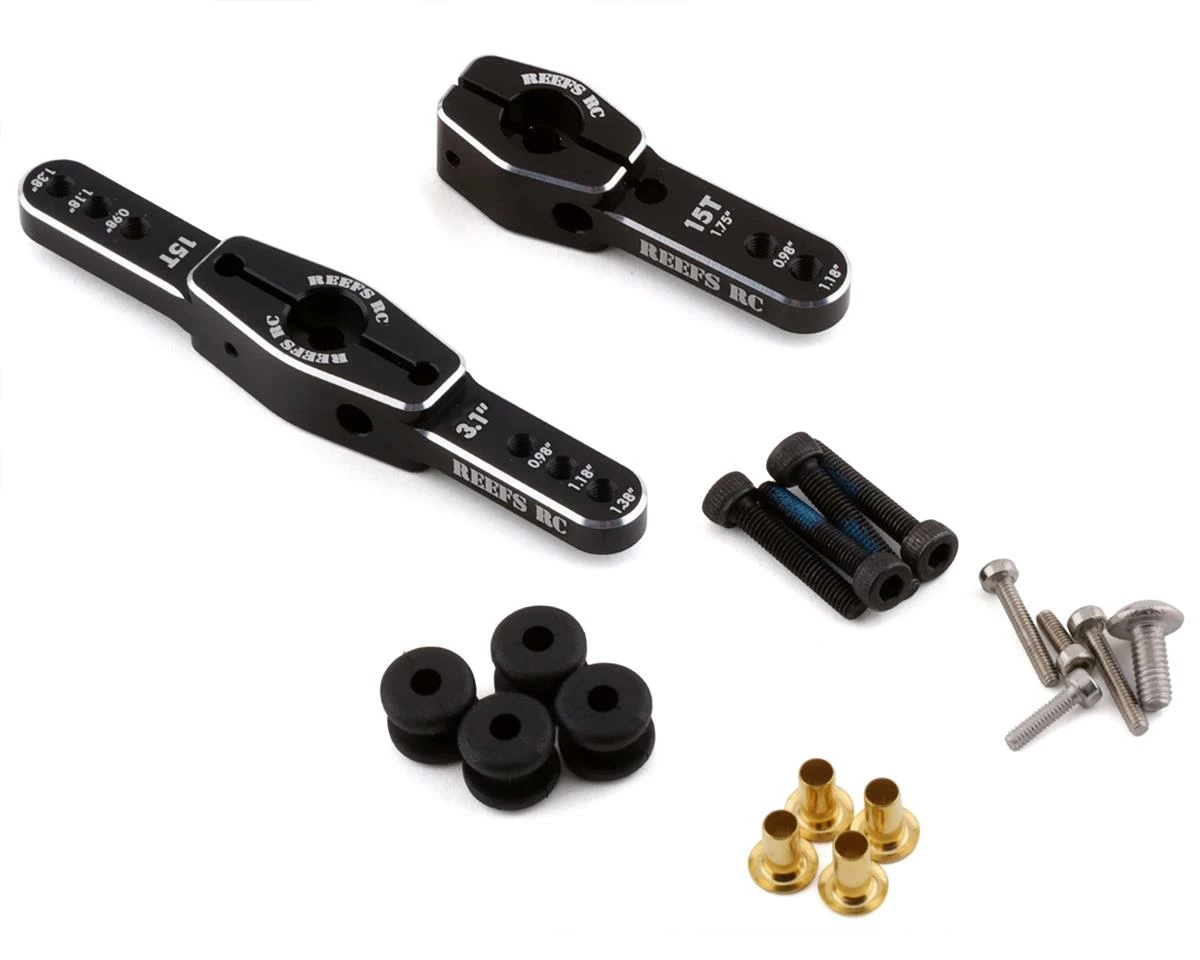

Reefs Beast 1000 Waterproof Digital 1/5 Scale Brushless Servo. This monster 1/5 scale servo is capable of up to 1080oz-in. at 8.4V and 0.08/60° sec. Package includes one servo, two servo horns and hardware.

NOTE: BEC is not required but recommended for maximum performance.

Features:

• High torque high speed brushless servo
• Magnetic angle sensor
• Waterproof
• Pulse width modulation control
• Includes Reefs single and double servo horn

Specifications:

• Voltage: 4.8-8.4V
• Waterproofing: 7 Point Seal
• Mechanical Angle: No Limit
• Material: Steel Gears/CNC Aluminum Casing
• Bearing Type: 5 Ball Bearing
• Wires: 22AWG
• Weight: 10oz (285g)
• Dimension: 2.59×1.18×2.32in (LxWxH)
• Torque:
• 6V: 800oz-in
• 7.4V: 900oz-in
• 8.4V: 1080oz-in
• Speed:
• 6V: 0.11/60° sec
• 7.4V: 0.095/60° sec
• 8.4V: 0.08/60° sec
• Spline: 15T
• Dead Band Width: 2uSec

This product was added to our catalog on August 25, 2021
