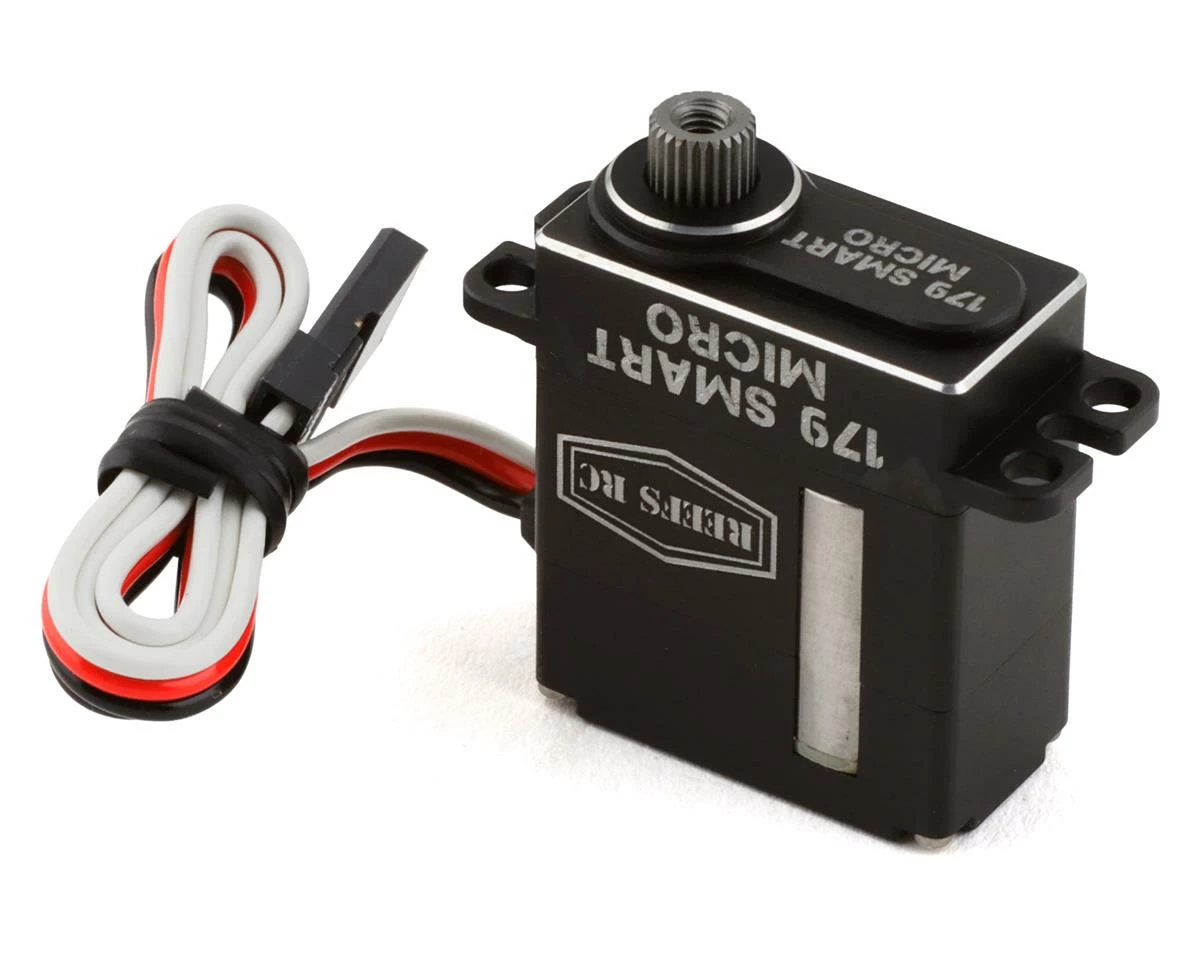

Reefs RC 179 Smart Micro Servo/Winch

The Reefs RC 179 Smart Micro Servo/Winch packs big power into this micro size. Using a brushless motor and programmable electronics this servo is able to produce up to 179oz-in at 8.4v! The Reefs RC 179 can be programmed to either act as a traditional servo or set up for continuous rotation in winch mode. If your looking for a powerful servo/winch option but space is tight this Reefs RC 179 Smart Micro servo may be your solution.

Features:

• Fully Programmable w/ REEFS Software (REEFS LINK required for Programming)
• Built in preprogrammed winch controller
• Pulse Width Modulation Control
• High Torque digital brushless servo

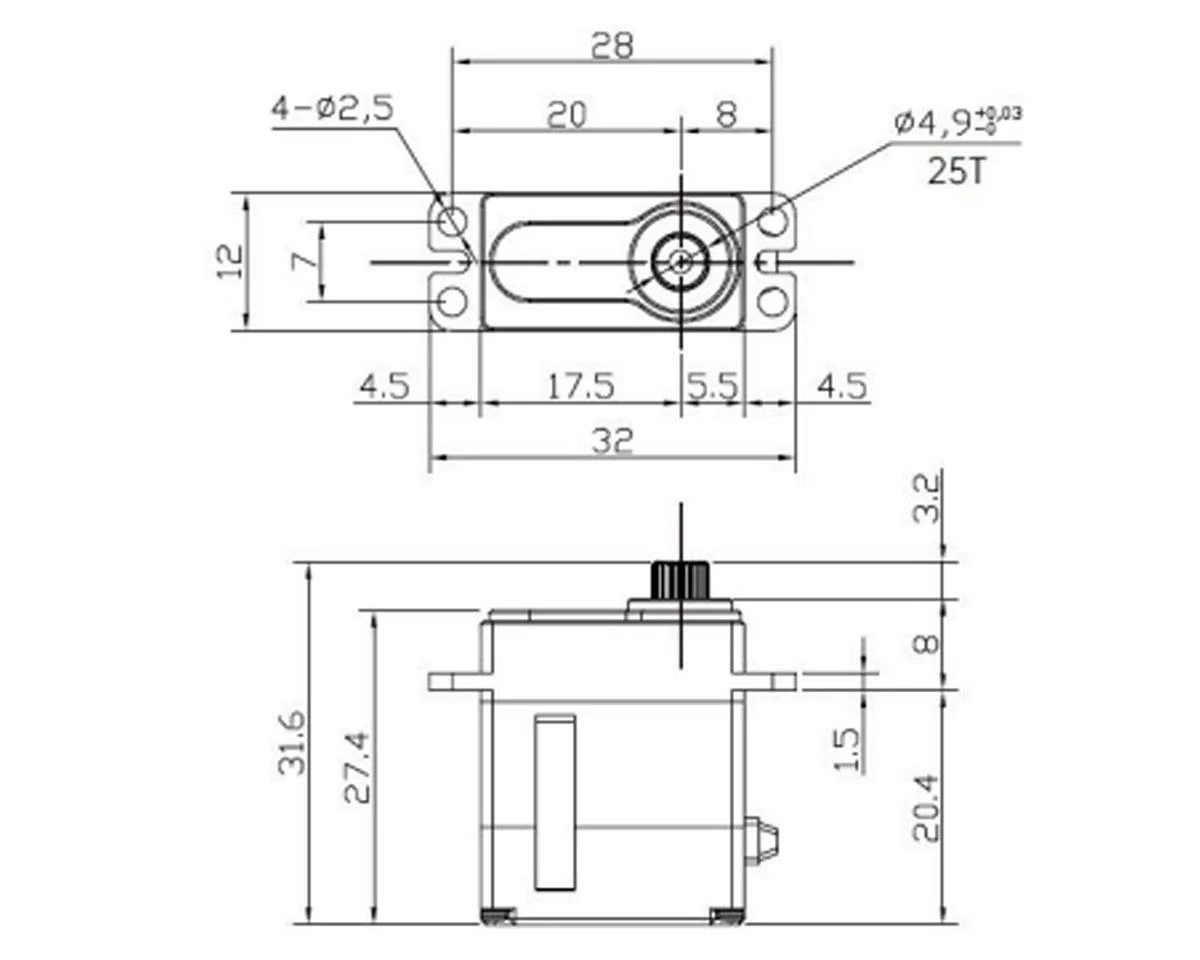

Specifications:

• Length: 1.08″ (27mm)
• Width: 0.9″ (23mm)
• Height: 0.47″ (12mm)
• Weight: .74oz / 21g
• Torque:
  • 6.0V: 135oz
  • 7.4V: 159oz
  • 8.4V: 179oz
• Speed:
  • 6.0V: .09sec
  • 7.4V: .07sec
  • 8.4V: .06sec
• Servo Type: Digital
• Servo Size Category: Micro
• Programmable: Yes (via optional programmer)
• Servo Operating Voltage 6.0 – 8.4V (HV)
• Spline Count: 25
• Bearing: 2BB
• Deadband: 2uS

Includes:

• (1) Reefs RC 179 Smart Micro Servo/Winch

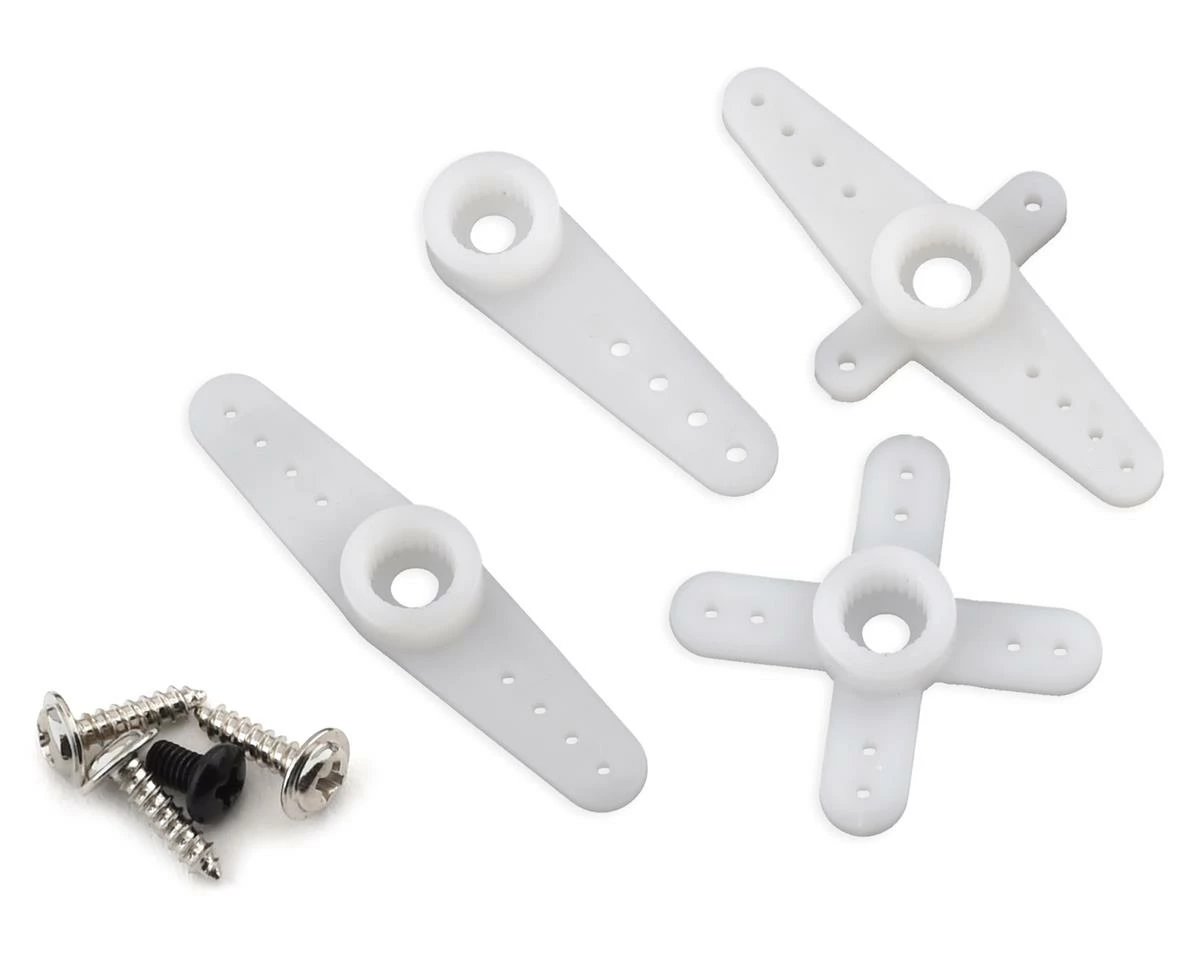

• Servo Horn Assortment
• Hardware

This product was added to our catalog on August 25, 2022
