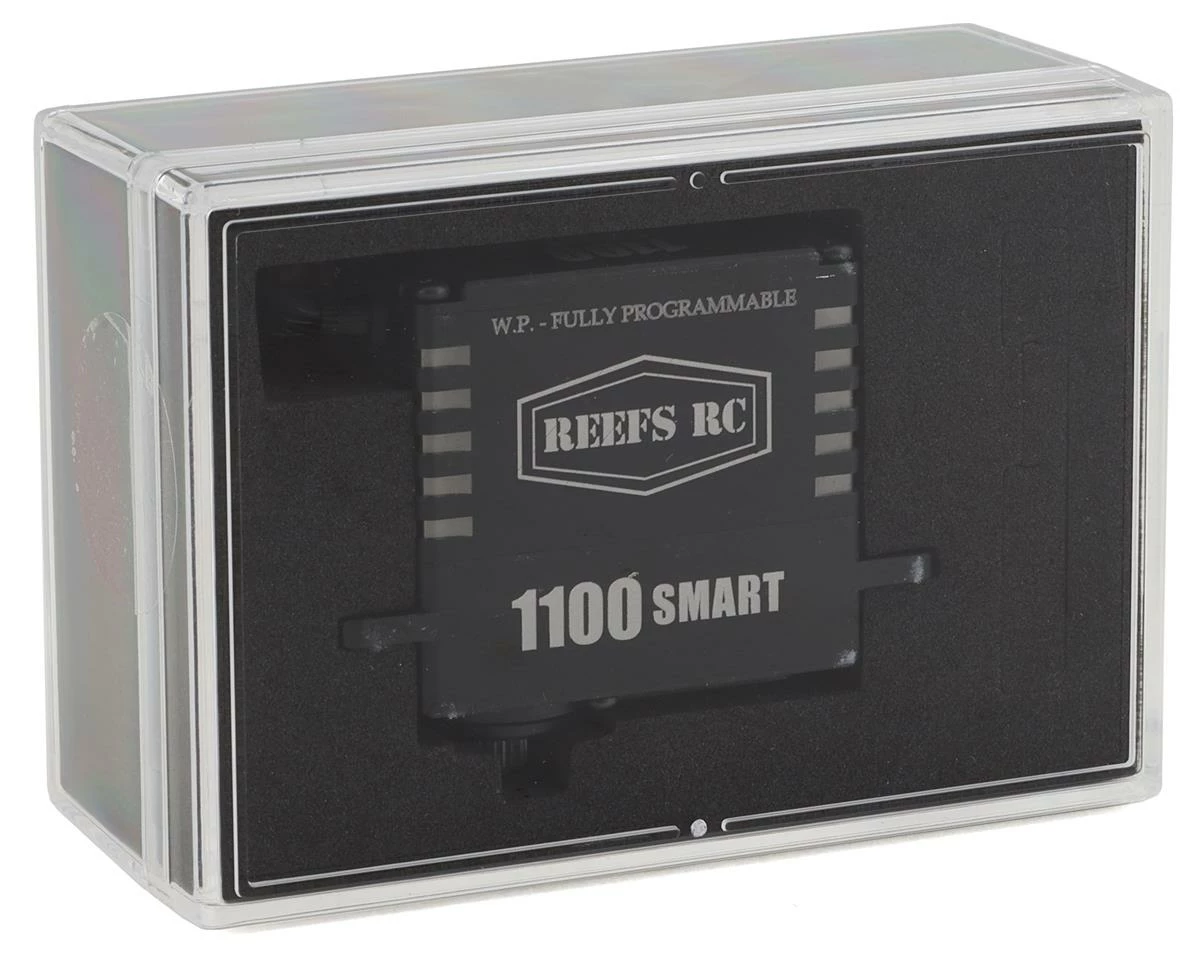

Reefs RC 1100 Smart Servo & Winch

Reefs 1100 Smart Servo & Winch.

Features:

• High Torque High Speed Brushless SERVO or WINCH
• Comes as SERVO out of the Box, can be changed to WINCH with the REEFS LINK and Software.
• BUILT IN PREPROGRAMMED WINCH CONTROLLER
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• REEFS LINK required for Programming
• BEC Not Req. Recommended for max performance

Specifications:
SUBMARINE WATERPROOF: 7 Point Seals w/ GRAY HEAT SINK
Voltage: 4.8V – 8.4V
Internal: Steel Gears / All CNC Aluminum Casing
Bearing Type: 4 Ball Bearings / Weight: 2.99oz
Dimension: 1.57 x .79 x 1.5 (LWH)
Torque: 760oz @ 6v/ 930oz @7.4v/ 1100oz @8.4v
Speed: .16sec @6v/.13sec @7.4v/.12sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
Unload Current: 460mA @ 4.8V / 500mA @ 6.0V / 540mA @ 7.4V / 580mA @ 8.4V
Load Current: 5400mA @ 4.8V / 6000mA @ 6.0V / 6800mA @ 7.4V / 7500mA @ 8.4V

This product was added to our catalog on March 4, 2022
