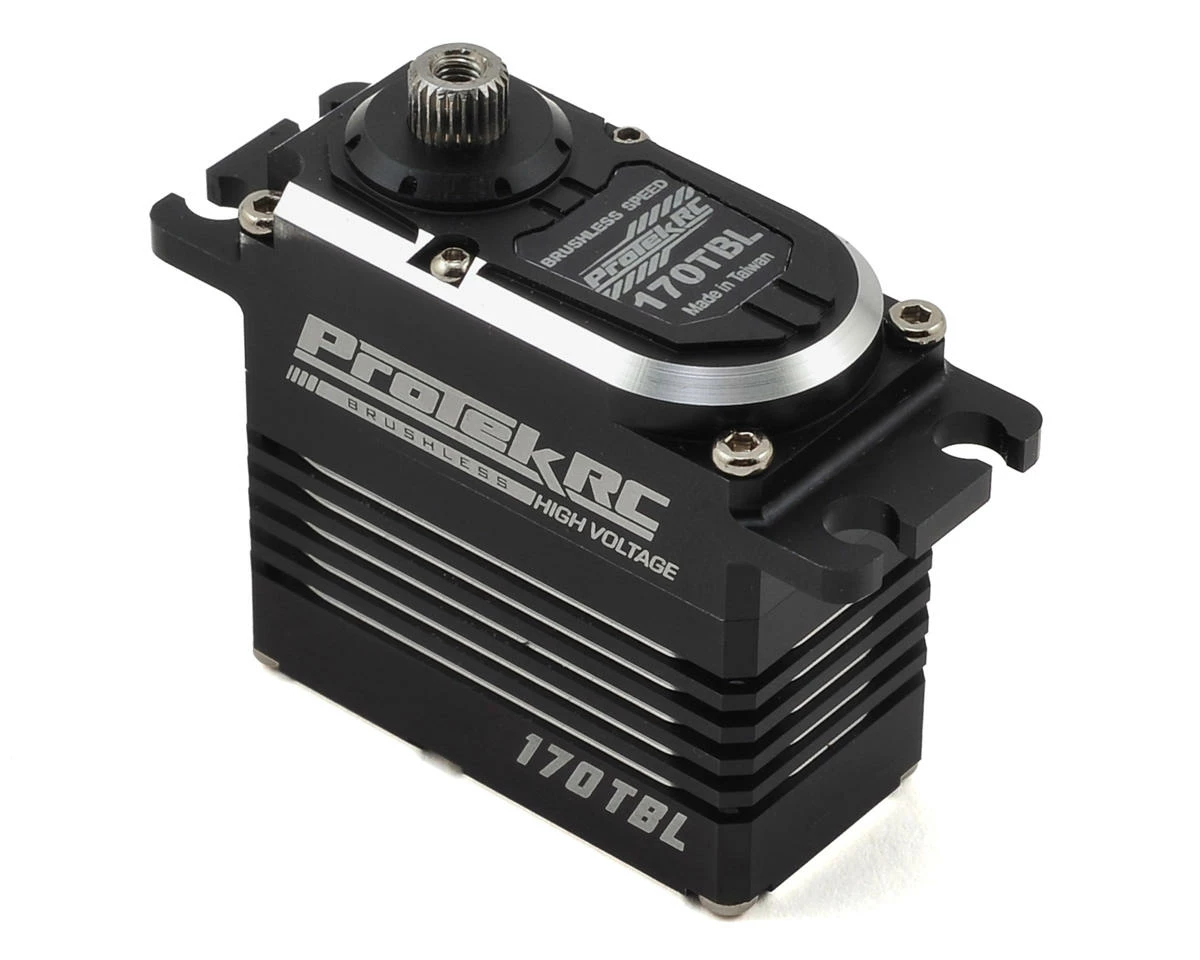

Protek RC 170TBL “Black Label” High Torque Brushless Servo (High Voltage/Metal Case) (Digital)

ProTek RC 170TBL Black Label High Torque Brushless Servo.

Brushless servo technology has improved by leaps and bounds. Finally, brushless servos can deliver holding power, speed and precision that can compete with a coreless servo. Combine that with the superior efficiency and lifespan of a brushless motor and you have a servo that hits all the marks, with the performance and quality required for a pro level build.

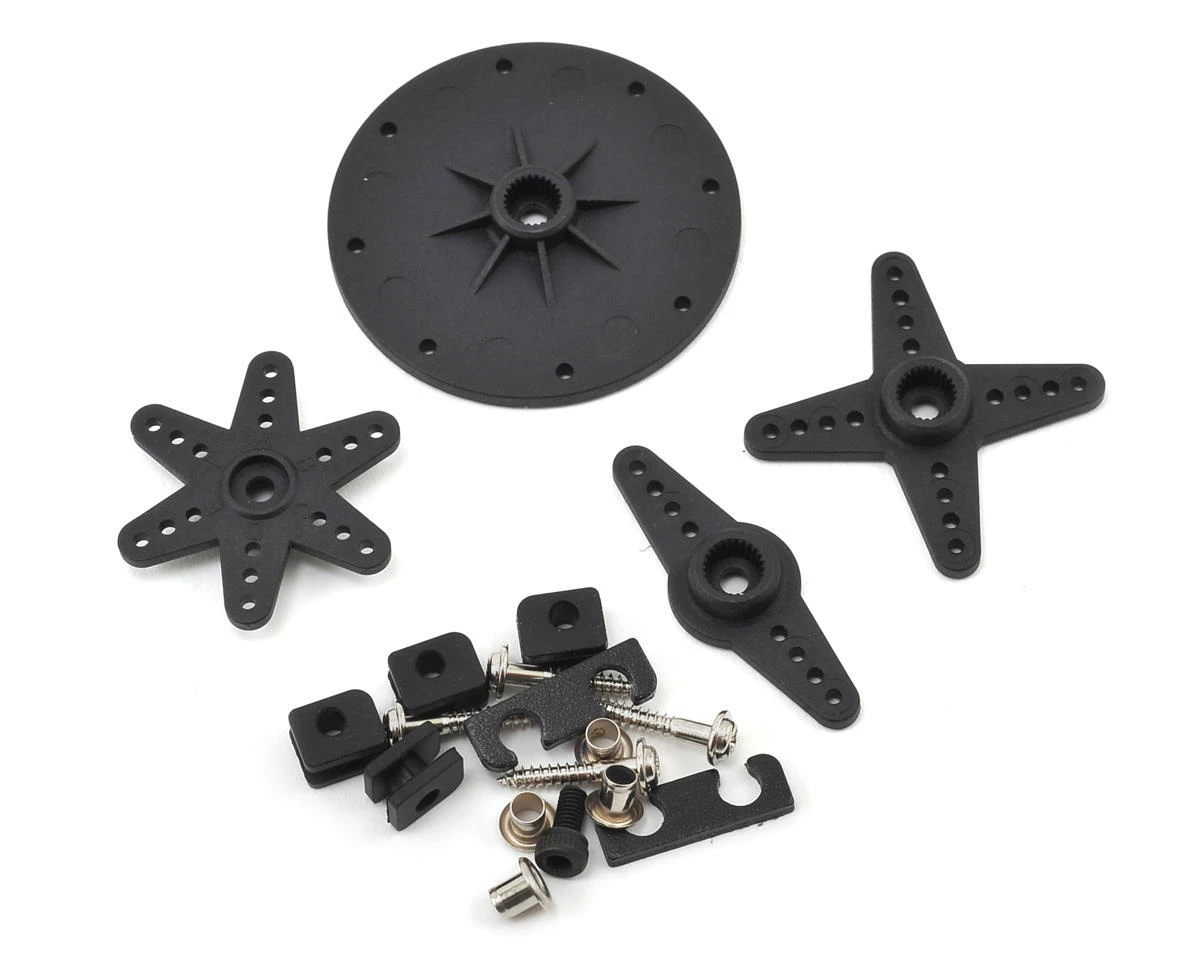

A black anodized aluminum case with aluminum and white accents give this servo a stealthy look that sets it apart from the rest. The aluminum upper case provides bomb proof durability and the heat sink center case offers efficient heat dissipation and helps to reduce weight. The lead wire is detachable, allowing you to easily custom tailor the servo lead to your application, and the package includes both 135mm and 285mm length servo leads. Plus, a full selection of servo arms and mounting hardware are included making installation easy.

NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.

Features:

• Ideal for any 1/10 to 1/8 surface application that requires high torque
• Full aluminum black anodized case
• High voltage circuitry
• 0.13 transit speed, and 600 oz-in of torque @ 6.0V
• 0.11 transit speed, and 650 oz-in of torque @ 7.4V

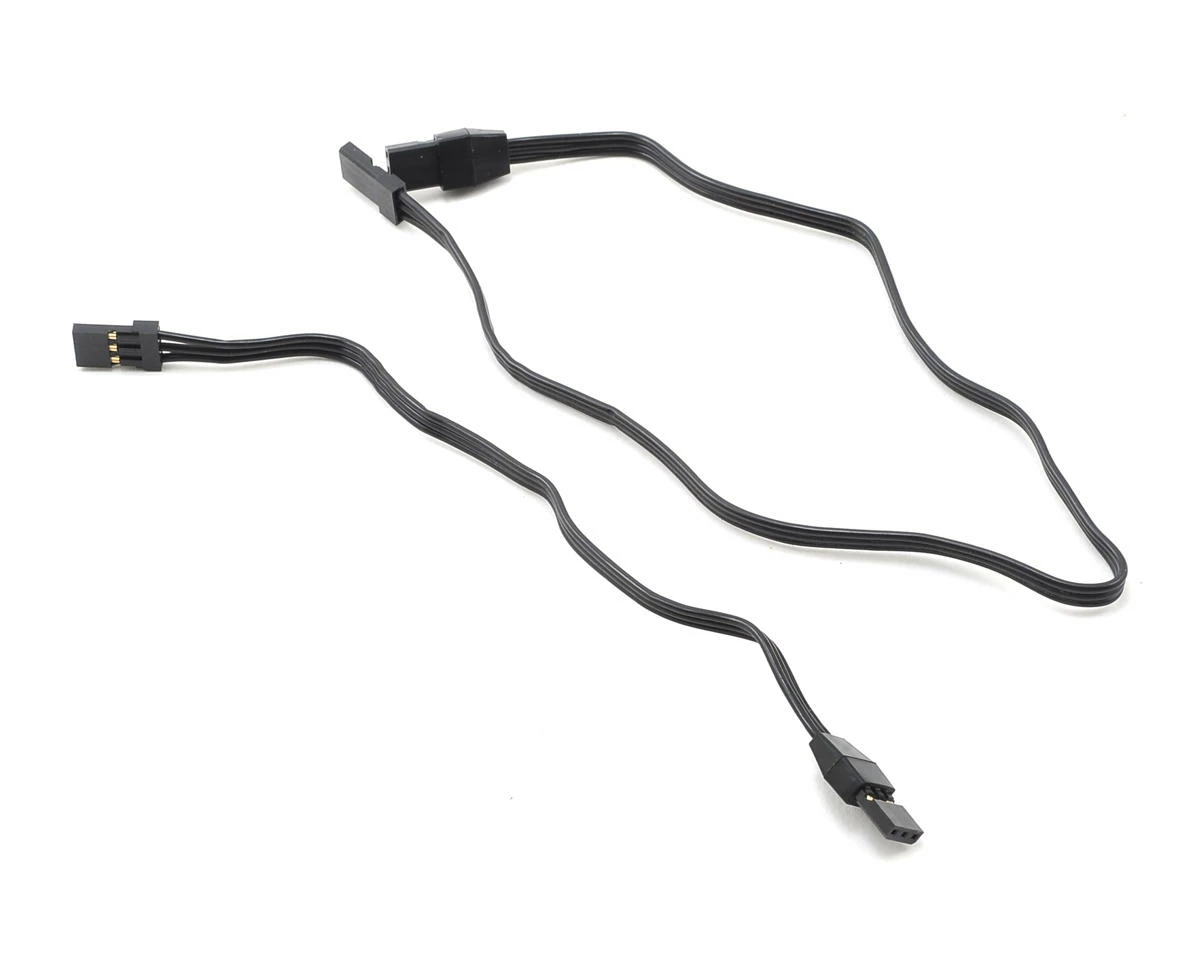

• 150mm and 300mm length 22awg detachable servo leads included w/gold plated connectors
• Full metal gears and dual ball bearings
• Brushless motor

Available Servo Leads:

• PTK-3049: 70mm (2.75″)
• PTK-3047: 150mm (5.91″)
• PTK-3048: 300mm (11.81″)

Servo Model	170TBL
Recommended Application	1/10 to 1/8 Scale Surface
Operating Voltage	4.8V – 7.4V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V	0.13/60° sec
Operating Speed @ 7.4V	0.11/60° sec
Dynamic Torque @ 6.0V	600 oz-in (43.2 kg-cm)
Dynamic Torque @ 7.4V	650 oz-in (46.8 kg-cm)
Motor Type	Brushless Digital
Output Shaft	25 Tooth
Gears	Metal
Weight	72g
Pulse/Frequency	1520?s / 333hz
Dimensions	40x20x37.8mm
Length (Bottom to Mount)	28.4mm

This product was added to our catalog on December 28, 2016
