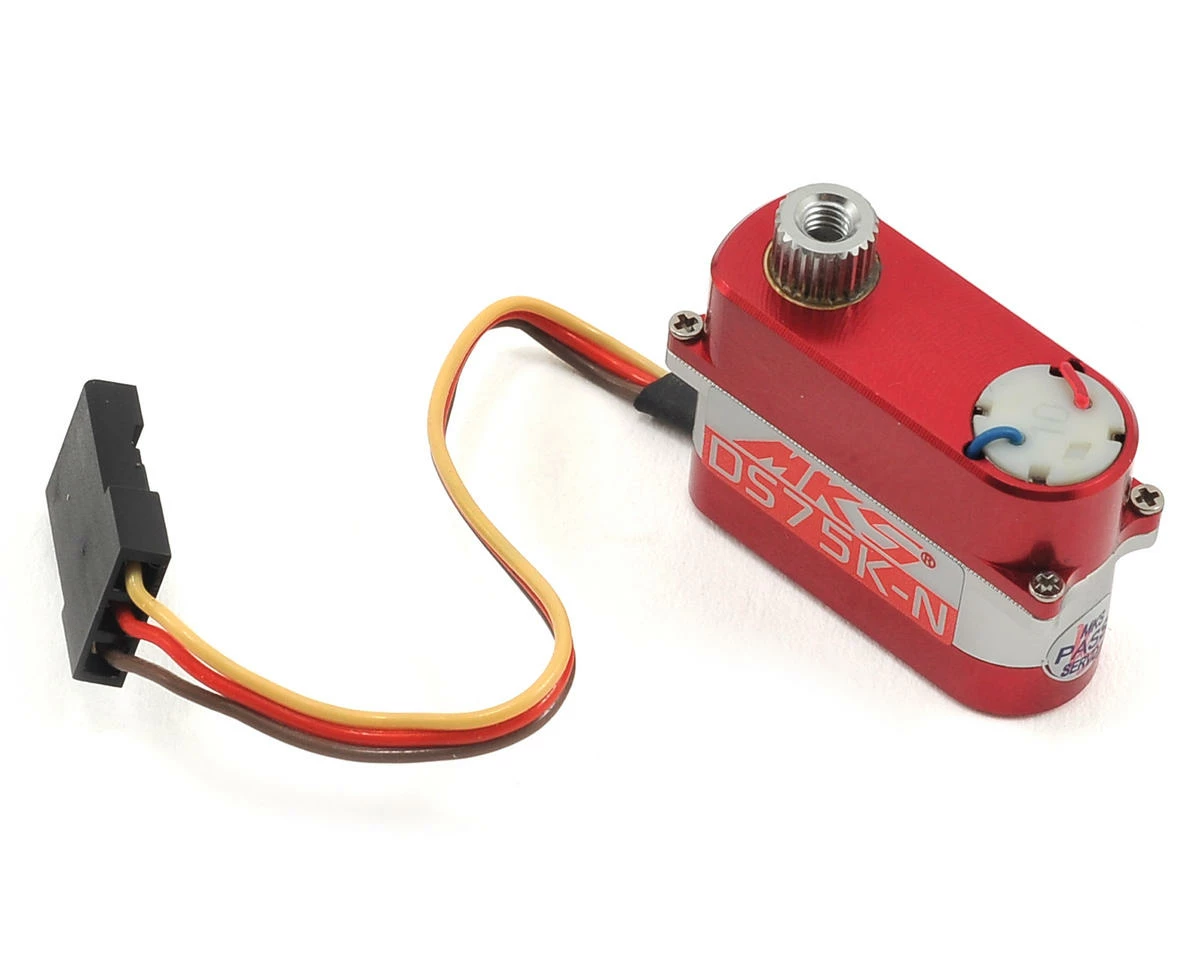

MKS Servos DS75K-N Titanium Gear High Speed Glider Wing Servo W/Aluminum Case (No Tabs)

The MKS DS75K-N Titanium Gear High Speed Glider Wing Servo is perfect for discus launch, hand launch and F3K glider applications that require a precise wing servo with low power consumption and superior holding torque, combined with a precision machined aluminum case that has no mounting tabs.

Specifications:

• Torque:
• @3.7V: 22.2 oz-in (1.6 kg-cm)
• @4.8V: 27.7 oz-in (2.0 kg-cm)
• @6.0V: 33.3 oz-in (2.4 kg-cm)
• Speed:
• @3.7V: 0.22s
• @4.8V: 0.16s
• @6.0V: 0.13s
• Weight: 7.4 g (+0.1) (no mounting tabs)
• Dimension: 23x9x16.7mm
• Working Voltage: 3.5 ~ 6.0 V DC Volts  (compatible with 1S LiPo)
• Working frequency: 1520μs / 333hz
• Dead Band: 0.001 ms (Default)
• Bearing: 2BB
• Motor: Coreless Motor
• Gear: 7075 Chrome-Titanium alloy gear
• Case: 6061 Aluminum CNC Casing

This product was added to our catalog on August 5, 2015
