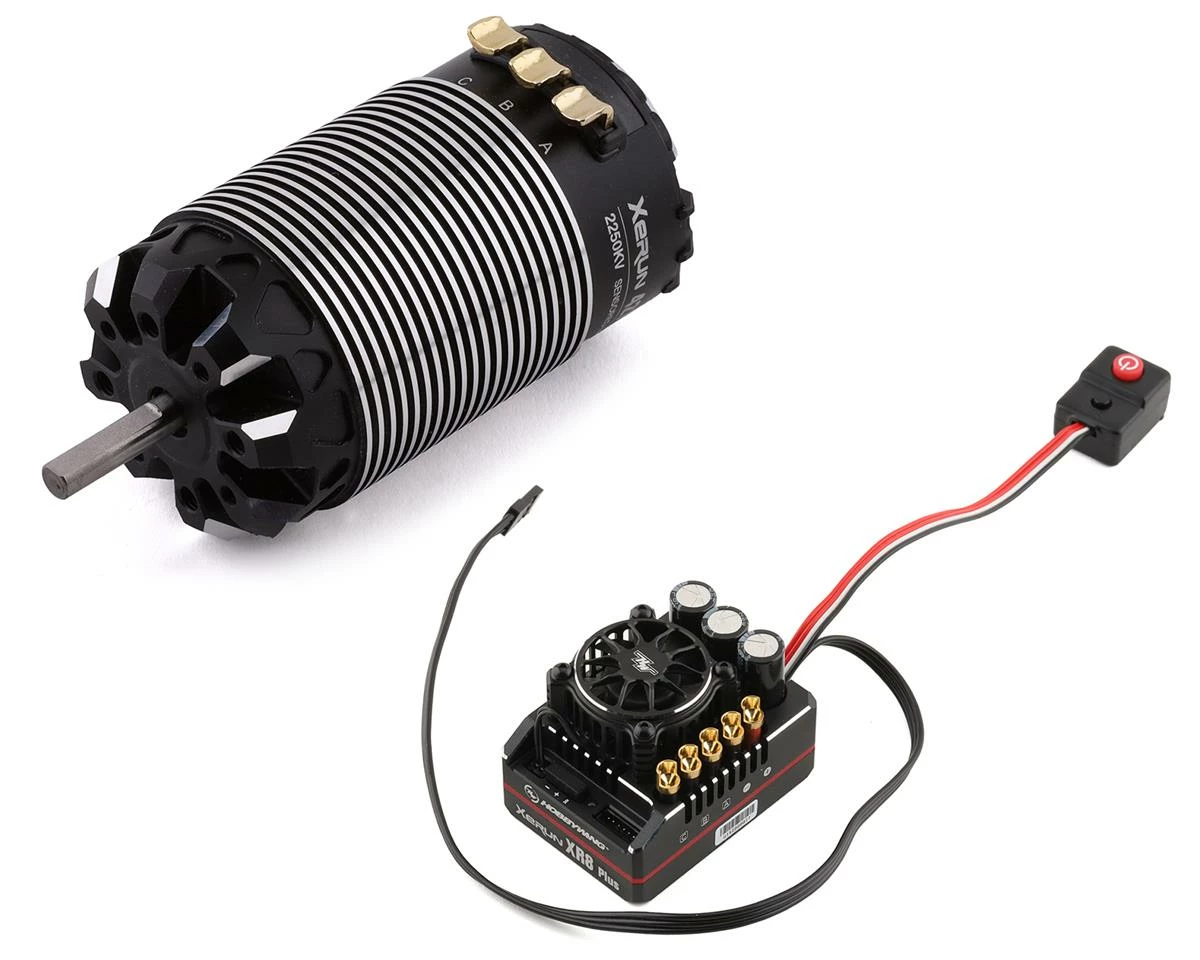

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4274 G3 Motor Combo (2250kV)

Hobbywing Xerun XR8 Plus G2S Brushless ESC/4268SD G3 Motor Combo. The Hobbywing Xerun XR8 Plus G2S 1/8 Competition Sensored Brushless ESC is the next level in 1/8 competition ESC’s. Advancements have been made allowing this ESC to support 48° of boost and turbo timing. Pair this ESC with the included 4268SD G3 motor for extreme performance.

• ESC:
• Efficient heat dissipation system with lower temperature rise
• Durable frameless fan
• Internal Reverse Polarity Protection Circuit
• RPM speed limit function
• Easy Obtain Running Status with Real-time Data Recording Function
• Multiple Programmable Items
• Capacitor Thermal Protection
• Super Internal BEC
• Excellent dustproof performance
• Ultra-soft 11AWG silicone wire
• Customized solder tabs, easy to solder
• Motor:
• 2250Kv recommended for 1/8 off road
• Turbo Timing Technology
• Full Sensored mode (when paired with XR8 ESC)
• Adjustable Timing (Bi-Directional) 20-40 degrees
• Advanced Hall Sensor System
• 4-pole-8-magnet “Staggered Pole” rotor – HOBBYWING Patented design
• Guarantees users the effective heat dissipation and dust prevention
• The use of double insulated windings (240°C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340°C) guarantees users the outstanding performance and super durability

• ESC:
• Scale: 1/8th
• Waterproof: No
• Continuous/Peak ESC Current: 200A/1080A
• Input Voltage: 2-6S Lipo
• BEC Output: 6-8.4V Adjustable,
• Continuous/Peak BEC Current: 6A/15A(Switch-mode)
• ESC Programing: SET Button on ESC/LCD Program Box/OTA Programmer
• Firmware Upgrade: Supported
• Size: 56.1mmx42.1mmx38.5mm
• Weight: 122g(w/wires)
• Applications: SL BL Motors/SD BL Motors
• Vehicles: 1/8th On-Road/Off-Road/Truggy Racing
• KV Rating/T Count: 4S LiPo – 4268/4274 3000KV / 6S LiPo – 4274 2400KV
• ESC Fan:
• Size: 30x30x10mm
• Voltage Range: 5-8.4V
• Motor:
• Kv: 2250Kv
• Pole: 4
• LiPo: 2S-6S
• Shaft Diameter: 5mm
• No Load Current: 5.4A
• Size (Diameter x Length): 42x74mm
• Weight: 354g
• Application: 1/8 Off Road Truck
