Hobbywing EZRun Max8 G2 Waterproof Brushless ESC/Motor Combo W/XT90 (2500kV)
Original price was: $239.99.$97.99Current price is: $97.99.
- There are quality problems, free return and exchange
- Efficiency meets excellence in customer care.
- High quality products, low prices.
- Free Shipping, Quality Goods

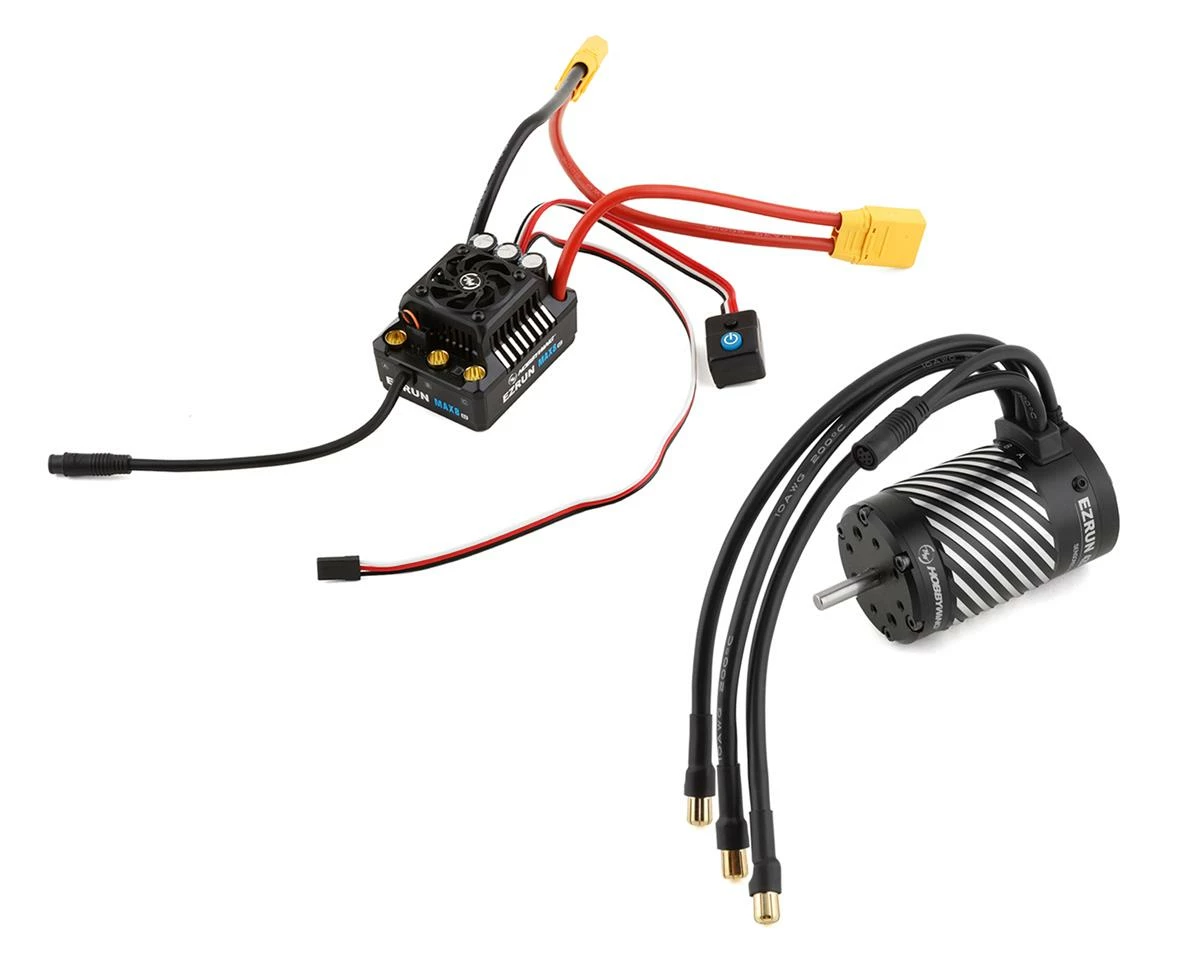

The Hobbywing EZRun Max8 G2 Waterproof Brushless ESC and Motor Combo includes the awesome 4268SD G2 – 2500kV sensored motor to deliver high torque, fast acceleration response and stable power output for 1/8 scale applications. Special technology for temperature control is implemented by the motor and provides less heat more efficiently (efficiency rate of up to 90%). The EZRun Max8 G2 Waterproof Brushless ESC, with installed XT90 connectors is built with high quality components and loaded with cutting edge firmware.
Features:
- ESC:
- Waterproof
- Sensored or Sensorless Brushless Operation
- 6S LiPo Compatible
- Dual XT90 Plugs

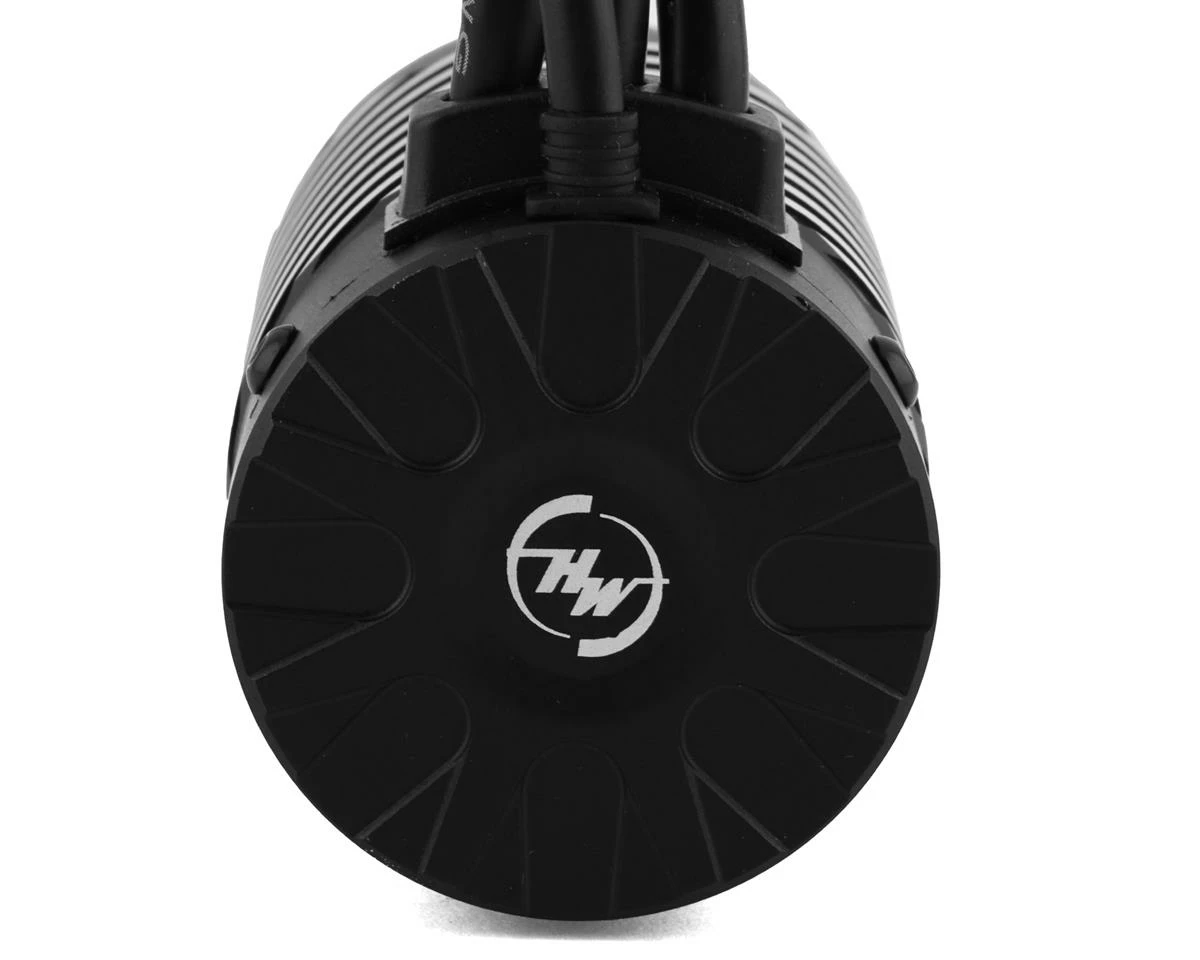

- Motor:
- 4 pole rotor for high torque, fast acceleration response and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
- Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
- This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 G2 ESC
Specifications:
- ESC:
- Continuous Current: 160A
- Peak Current: 1050A
- Plug Type: XT90
- Motor Type: Sensored or Sensorless Brushless
- Applications: 1/8 Touring Car, Buggy, Truggy, Monster Truck
- Brushless Motor Limit 4S LiPo/12-Cell NiMH: 3000 (4274 size motor)
- Brushless Motor Limit 6S LiPo/18-Cell NiMH: 2400 (4274 size motor)
- LiPo/NiMH Cells: 3-6S LiPo / 9-18 Cell NiMH
- BEC Output: 6V/7.4V/8.4V Switchable, Continuous current of 10A (Switch mode BEC)
- Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
- Size (LxWxH): 60x48x40.5mm
- Weight: 192g
- Programming Port: Fan/PRG Port
- Motor:
- Pole: 4
- KV(No-load): 2500
- R. (u): 0.0065
- Current No-load A: 4.8
- Motor D & L (mm): D=42, L=68
- Shaft D & L of the projecting part (mm): D=5, L=18.5
- LiPo(S): 2-4
- Weight: 355g (12.52oz)
- Applicable: 1/8th Off-Road, 1/10th Truck
Includes:
- EZRun Max8 ESC with XT90 connectors

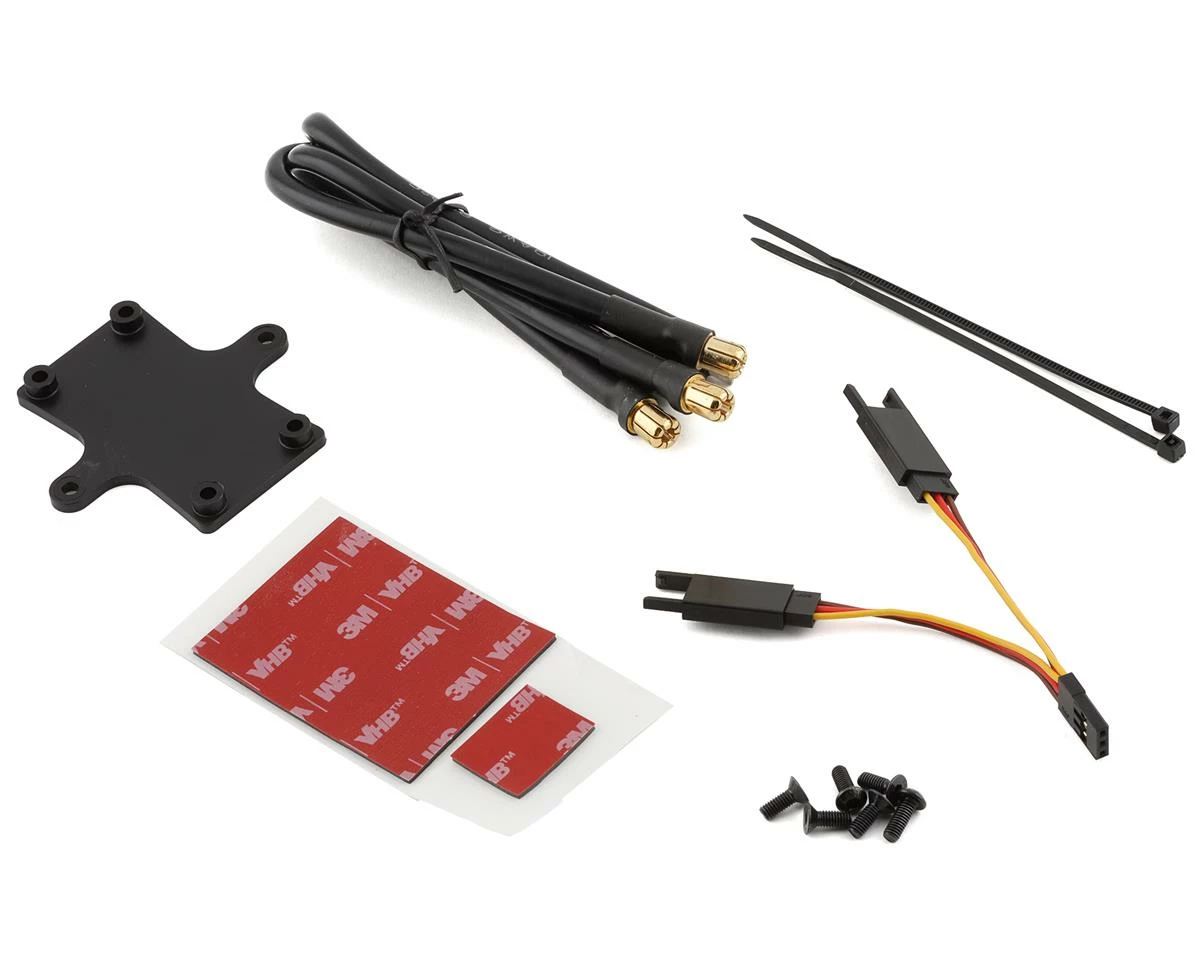

- Accessories (double sided tape, etc)
- 4268SD – 2500kV Brushless sensored motor
