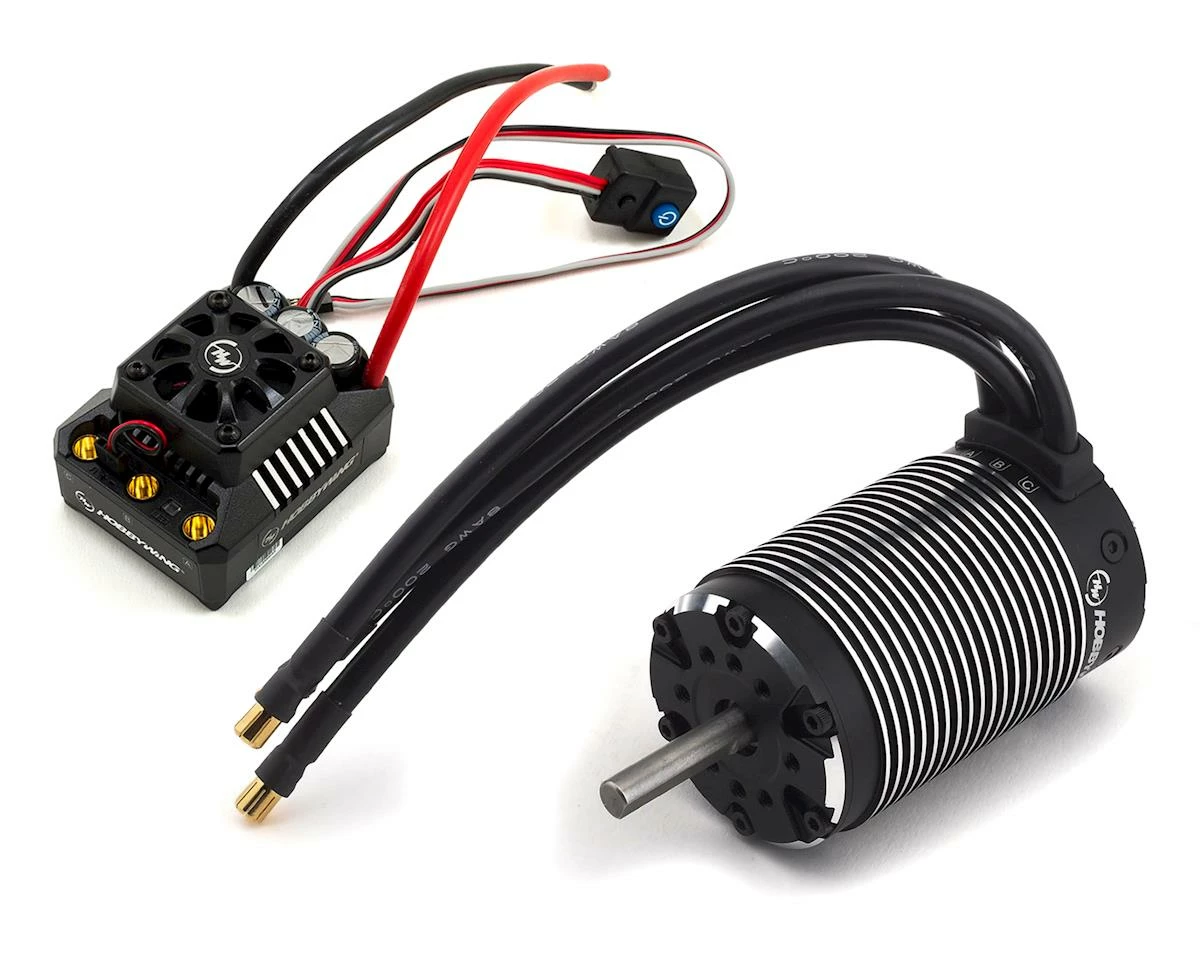

Hobbywing EZRun MAX6 V3 Sensorless Brushless ESC & Motor Combo W/5687SL (1100kV)

Specifications:

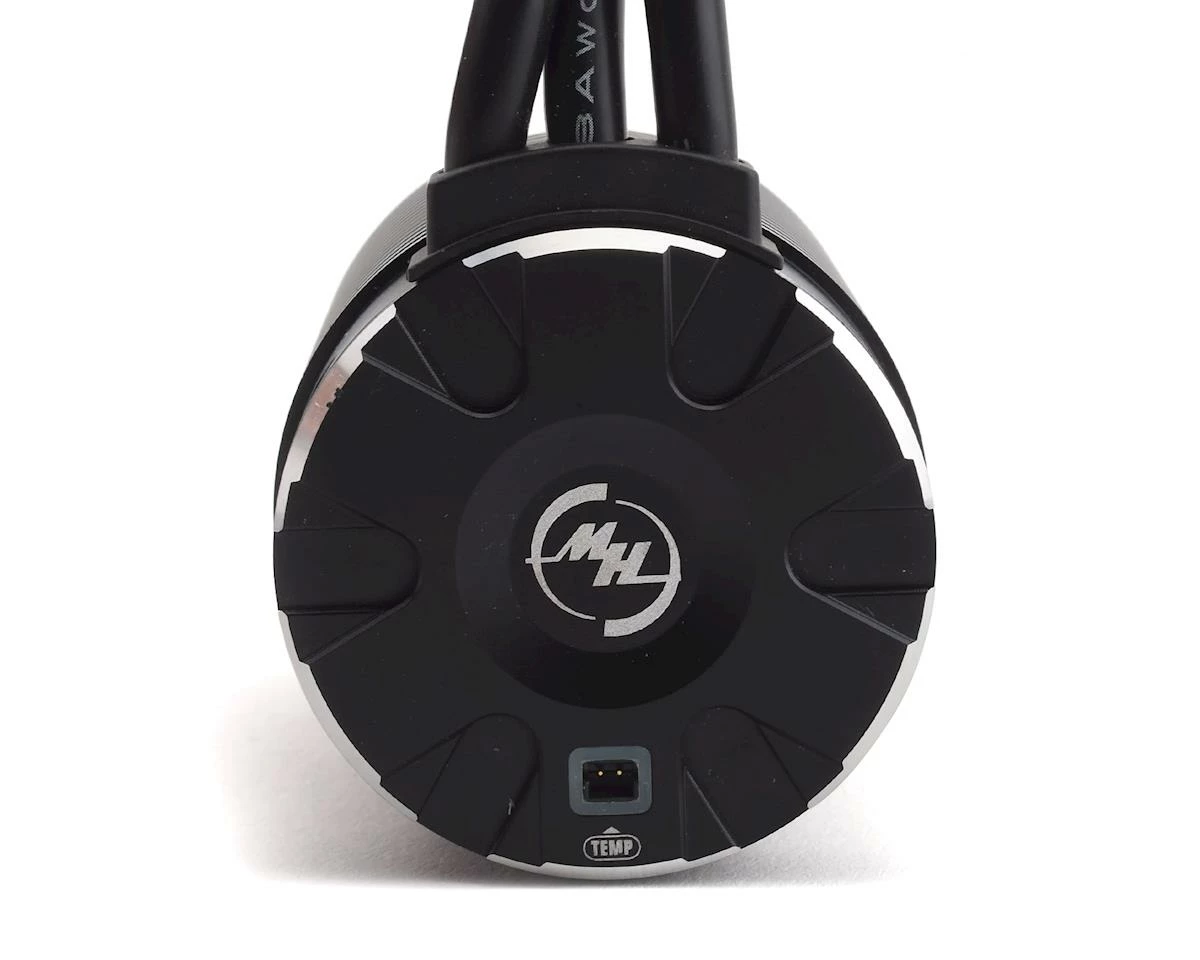

• Motor:
• Model: 5687SL-1100KV
• Pole: 4
• KV (No-load): 1100KV
• Resistance: 0.0041 Ω
• Current (No-load): 4.1 A
• Max Output Power: 5800 W
• Current at the point of M.O.P: 200 A
• Motor Diameter: 56mm
• Motor Length: 87mm
• Shaft Diameter: 8.0mm
• Shaft Length: 31.0mm
• LiPo Cells: 3-8
• Weight: 916g (32.21oz)
• Applicable: 1/5th RC Vehicles Truck/Dragster
• ESC:
• Continuous Current: 160A
  Peak Current:
• Peak Current:
• Peak Current: 1,050A
• Motor Type: Sensorless Brushless Motor
• Applications: 1/6th Touring Car, Buggy, Truggy and Truck
• Motor Limit: With 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
• LiPo/NiMH Cells: 9-24S NiMH, 3-8S LiPo
• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
• Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
• Connectors: Input End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
• Size (LxWxH): 70x56x46.5mm
• Weight: 240g
• Programming Port: FAN /PRG Port
