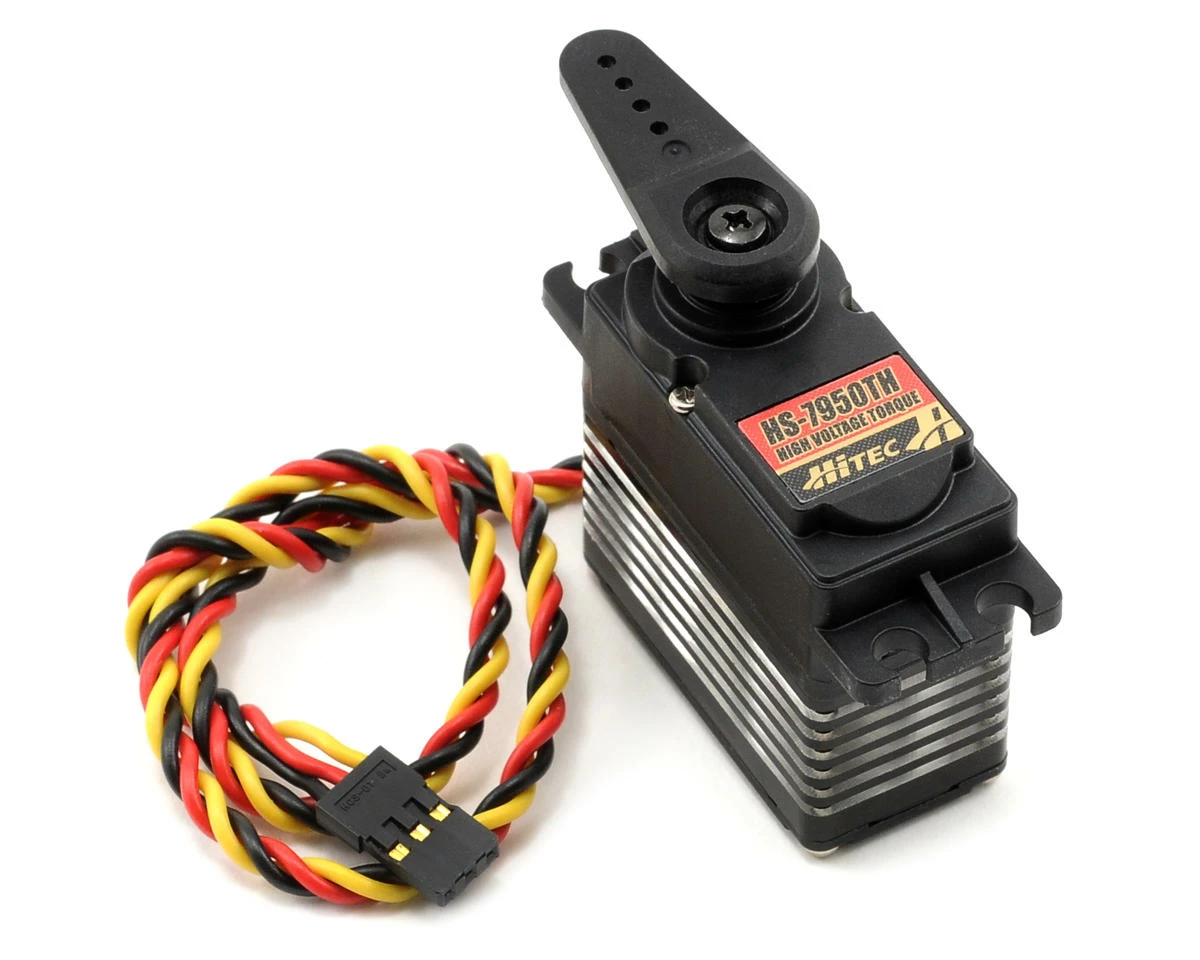

Hitec HS-7950TH High-Voltage 7.4V Mega Torque Digital Servo

This is the Hitec HS-7950TH High-Voltage Mega Torque Digital Servo. This is the most powerful servo Hitec has produced to date. The “Ultra Torque” HS-7950TH is designed to operate on a two cell LiPo Pack! Featuring Hitec’s high resolution “G2” second generation programmable digital circuit and their indestructible Titanium gears, the HS-7950TH has the performance and durability you’ve come to expect from a Hitec servo. Other features in the HS-7050TH include a 7.4v optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7950TG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 403oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time

Programmable Features:

• Dead Band Width
• Direction of Rotation
• Speed of Rotation (slower)
• End Points
• Neutral Points
• Fail Safe On/Off
• Fail Safe Point
• Resolution* (default is high resolution)
• Overload Protection* (default is off)

*These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Features:

• G2 Digital Circuit
• Titanium Gear Train (MK first gear)
• Ultra Performance Coreless Motor
• Heatsink Case
• Hardened steel gear pins Supported by Axial Brass Bushings
• (8) O-Rings for Water/Dust/Fuel protection
• Dual Ball Bearing Supported Output Shaft

Specifications:

• Size Category: Standard
• Type: Digital
• Application: Larger Air and Surface products
• Torque: 347/403/486 oz./in. (4.8v/6v/7.4V)
• Speed: 0.19/0.15/0.13 sec @ 60 deg. (4.8v/6v/7.4V)
• Weight: 2.34oz (66 g)
• Bushing Or Bearing: Bearing
• Bearing: Dual
• Motor Type: Corless
• Gear Type: Metal
• Gear Material: Titanium Gear Train (Metal Karbonite first gear)

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
