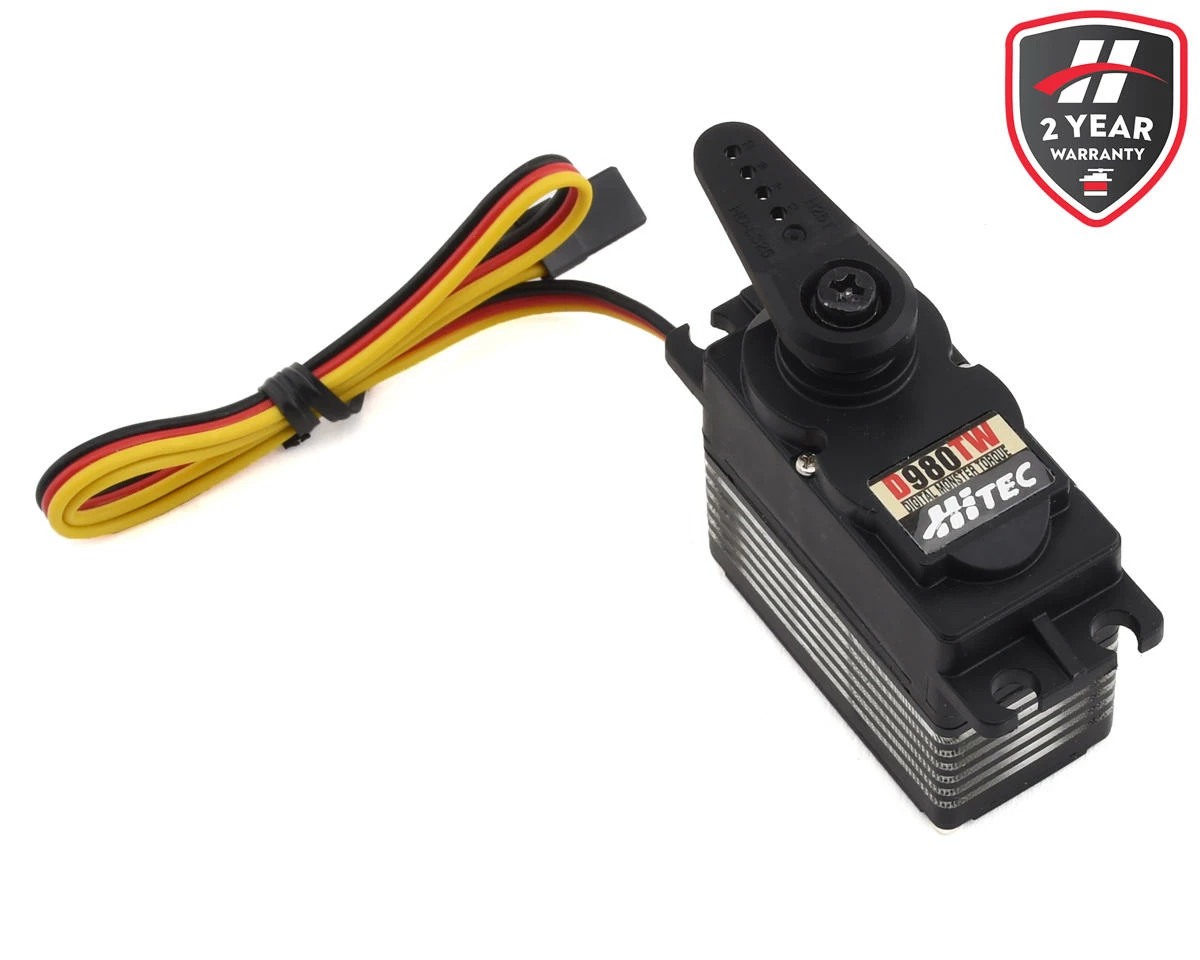

Hitec D980TW D-Series Monster Torque Digital Servo (High Voltage)

The Hitec titanium D-980TW monster torque, titanium gear servo is part of the cutting edge D-Series servo line. This servo combines industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and 12-bit ADC for unprecedented programmability and flexibility. The line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. The servo features an industry standard 25-tooth output spline with 3mm hex screw. This upgraded version of the Hs-7980TH delivers monster performance.



 Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications:

• Motor Type: Coreless
• Bearing Type: Dual Ball Bearing
• Speed:
• @6.0V: .21sec/60
• @7.4V: .17sec/60
• Torque:
• @6.0V: 500 oz-in
• @7.4V: 611 oz-in
• Size: 43.8×22.4×40.0mm (1.72 x 0.88 x 1.57)
• Weight: 79.00g

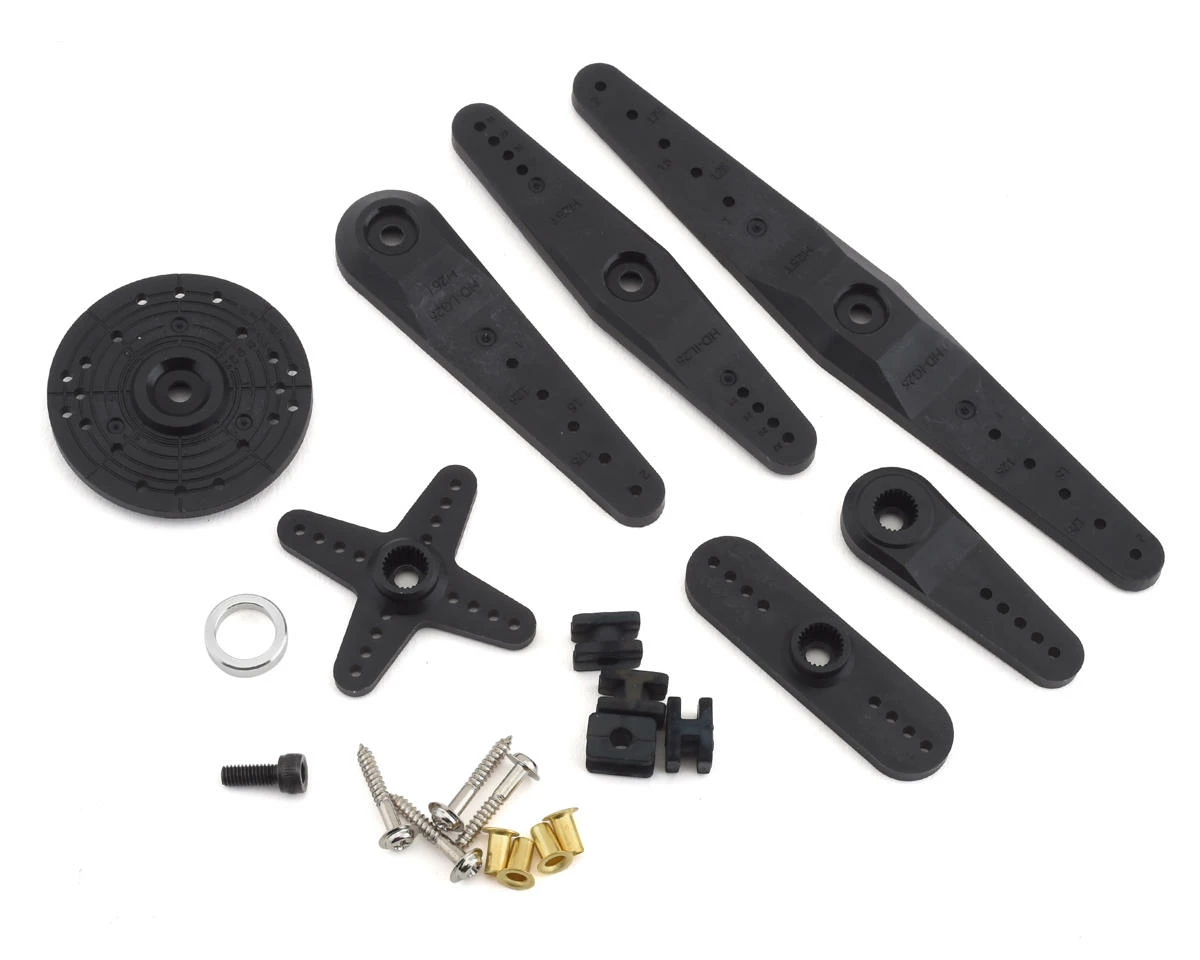

Includes:

• (1) D-980TW Wide Voltage Monster Torque Servo
• (1) 0.98″ (25mm) Single Arm servo horn
• (1) 1.2″ (31.5mm) Single Arm servo horn
• (1) 1.7″ (44mm) Double Arm servo horn
• (1) 2.2 ” (55mm) Single Arm servo horn
• (1) 2.8″ (72mm) Double Arm servo horn
• (1) 4.2″ (108mm) Double Arm servo horn
• (1) 1.5″ (38mm) 4-Point Horn
• (1) 1.4″ (36mm) Round Horn
• (4) Grommets, Eylets and Mounting Screws
• (1) Metal Adapter Ring, extra Horn Screw

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.

This product was added to our catalog on April 2, 2019
