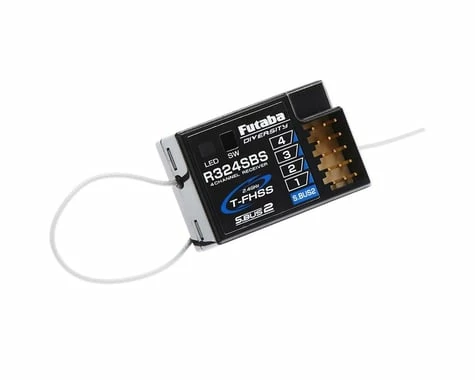

FUTABA R324SBS T-FHSS 4-Channel S.Bus2 Telemetry 2.4GHz Receiver

The Futaba 2.4GHz R324SBS T-FHSS 4-Channel SBus2 Telemetry Receiver is only compatible with Futaba T-FHSS telemetry compatible transmitters.

NOTE: This receiver is NOT compatible with 2.4GHz FASST, FASSTest, FHSS or S-FHSS non telemetry systems.

Features:

• Designed for use with Futaba surface transmitters using T-FHSS technology
• T-FHSS bidirectional telemetry
• SBus-2
• Normal/high-speed modes (auto detection), normal mode accepts any type of servo, high-speed mode only accepts digital servos including BLS servos
• High voltage
• Dual antenna diversity
• Battery fail safe

Specifications:
Operating Voltage: 3.7-7.4V
Size: 1.4 x 0.91 x 0.49″ (35.1 x 23.2 x 12.5mm)
Weight: 0.29oz (8.3g)
Number of Ports: 5
PWM Output: 4
SBUS Ports: 0
SBUS2 Ports: 1
FASST: No
Telemetry: Yes (T-FHSS)
S-FHSS: No
High Speed: Yes
High Voltage: Yes
Connector: J (STND)
Range: Full Range

NOTE: This receiver is NOT compatible with 2.4GHz FASST, FASSTest, FHSS or S-FHSS non telemetry systems.
