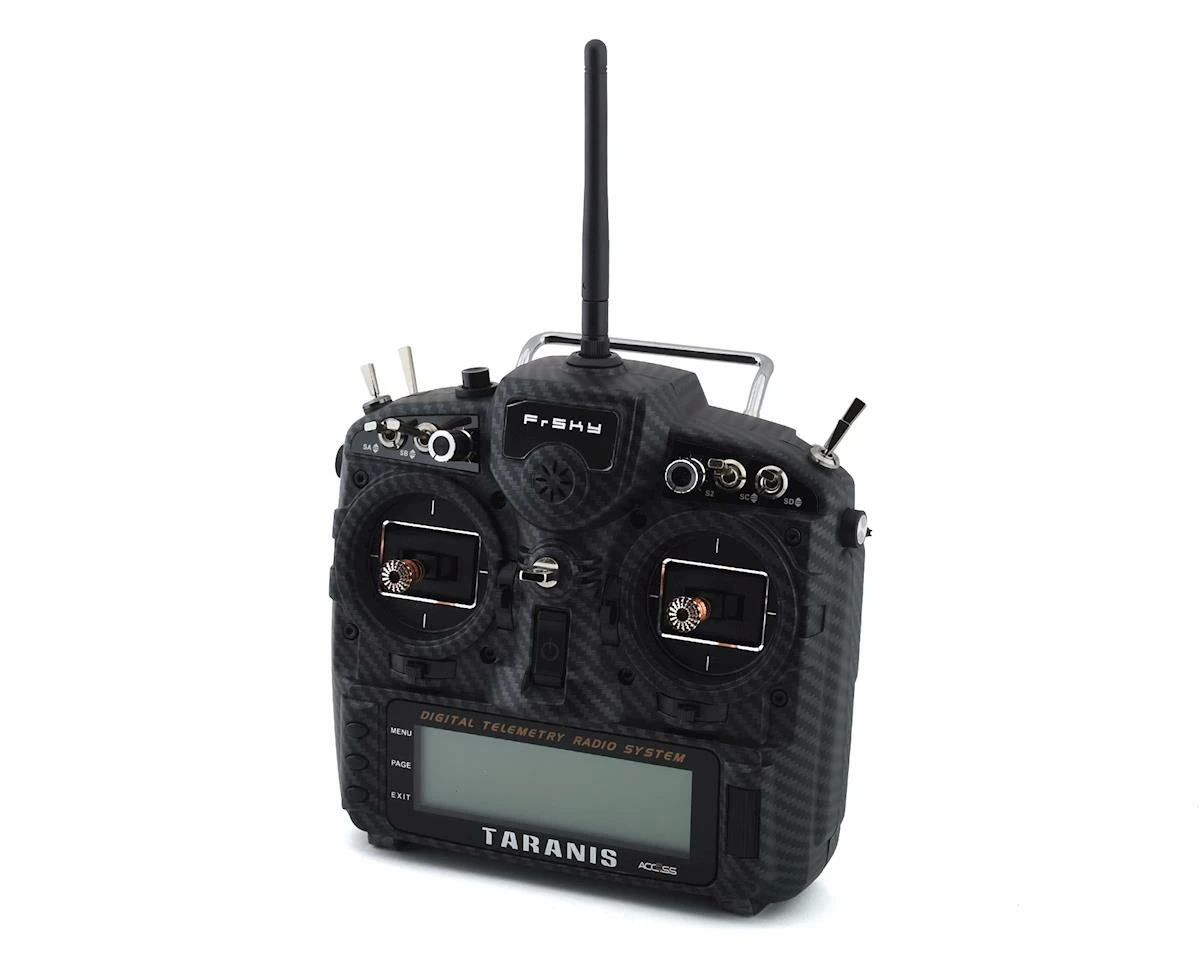

FrSky Taranis X9D Plus 2.4GHz SE ACCESS Transmitter (Carbon Fiber) W/2s Li-Io Battery

The FrSky Taranis X9D Plus Special Edition (SE) 2019 edition is a re-designed version with additions like an additional momentary button placed on the top left shoulder making it ergonomically friendly for DLG pilots to activate launch mode and features a program scroll wheel making it even easier to navigate the menus. The upgraded MCU is used in conjunction with a re-designed mainboard that further increases the computing capability and increases the data storage. The upgrades not only improve the running of LUA scripts, but it also optimizes overall performance like voice speech outputs.

The SE 2019 version is installed with the upgraded switches and M9 hall sensor gimbals and features the addition of a PARA wireless trainer function which makes them compatible with the FrSky Free Link App and AirLink S.

This version uses the latest ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Along with the new spectrum analysis function added to the OpenTX firmware, it is now possible to check the airwaves for RF noise. This version will give you a further improved experience based on the classic Taranis remote control. Additionally, tons of extra upcoming features that ACCESS brings will make this an ideal transmitter for any skill level.

• Classic Taranis form factor design
• Easy launch momentary button
• Program navigation button
• High-speed module digital interface
• Installed with ACCESS protocol
• Supports spectrum analyzer function
• Supports SWR indicator warning
• Haptic vibration alerts and voice speech outputs
• Supports wired training function
• Supports PARA wireless training function
• Compatible with FrSky Free Link App and AirLink S via mobile devices
• M9 hall sensor gimbal and upgraded switches
• FrSky Lithium Ion Battery Included

Dimension: 200 x 194 x 110mm (LxWxH)

Weight: 700g (without battery)

Operating system: OpenTX

Number of channels: 16 channels (up to 32 channels)

Internal RF module: ISRM-S-X9

Operating voltage range: 6.5 – 8.4V (2S) LiPo or Li-ion Only

Operating current: [email protected] (Typ)

Operating Temperature: -10° ~ 60°C (14° ~ 140°F)

Backlit LCD resolution: 212×64

Ports: Smart Port, Micro SD card slot and DSC Port

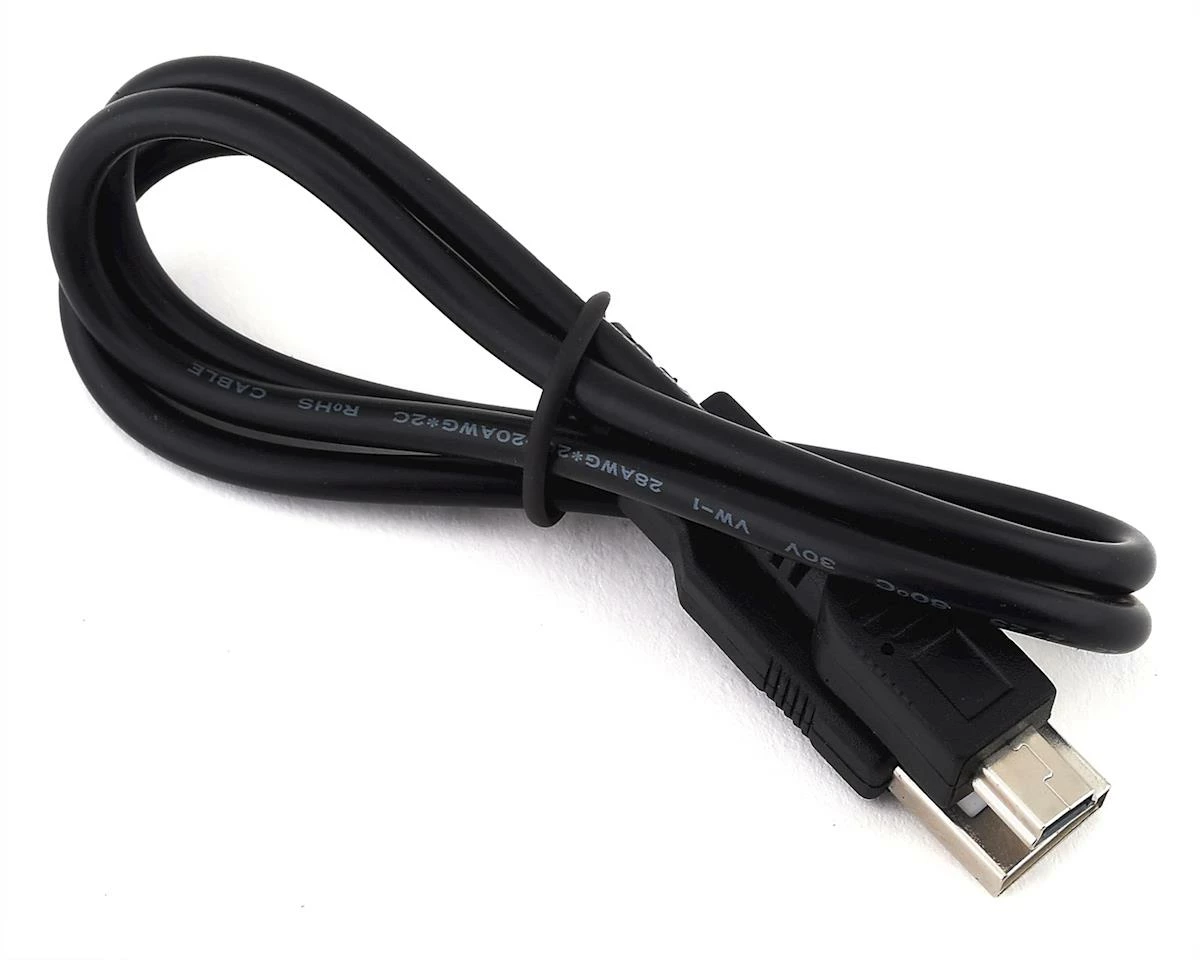

Charging: Mini USB interface: supports 2S Li-battery balancing charge

Model memories: 60 models (expandable by Micro SD card)

Compatibility: ACCST D16 and ACCESS receivers

X9D Comparison Chart

Feature List	Taranis X9D Plus 2019	Taranis X9D Plus SE 2019
Operating System	Open TX	Open TX
Communication Protocol	ACCST D16/ACCESS	ACCST D16/ACCESS
High Speed Module Digital Interface	X	X
SWR Indicator Warning	X	X
Spectrum Analyzer Function	X	X
Easy Launch Momentary Button	X	X
Haptic Vibration Alerts	X	X
Voice Speech Outputs	X	X
2s Lithium Battery Charging System	X	X
G9D Potentiometer Gimbals	X
M9 Hall Sensor Gimbals		X
Upgraded Switches		X
Wired Training System	X	X
PARA Wireless Training Function		X
