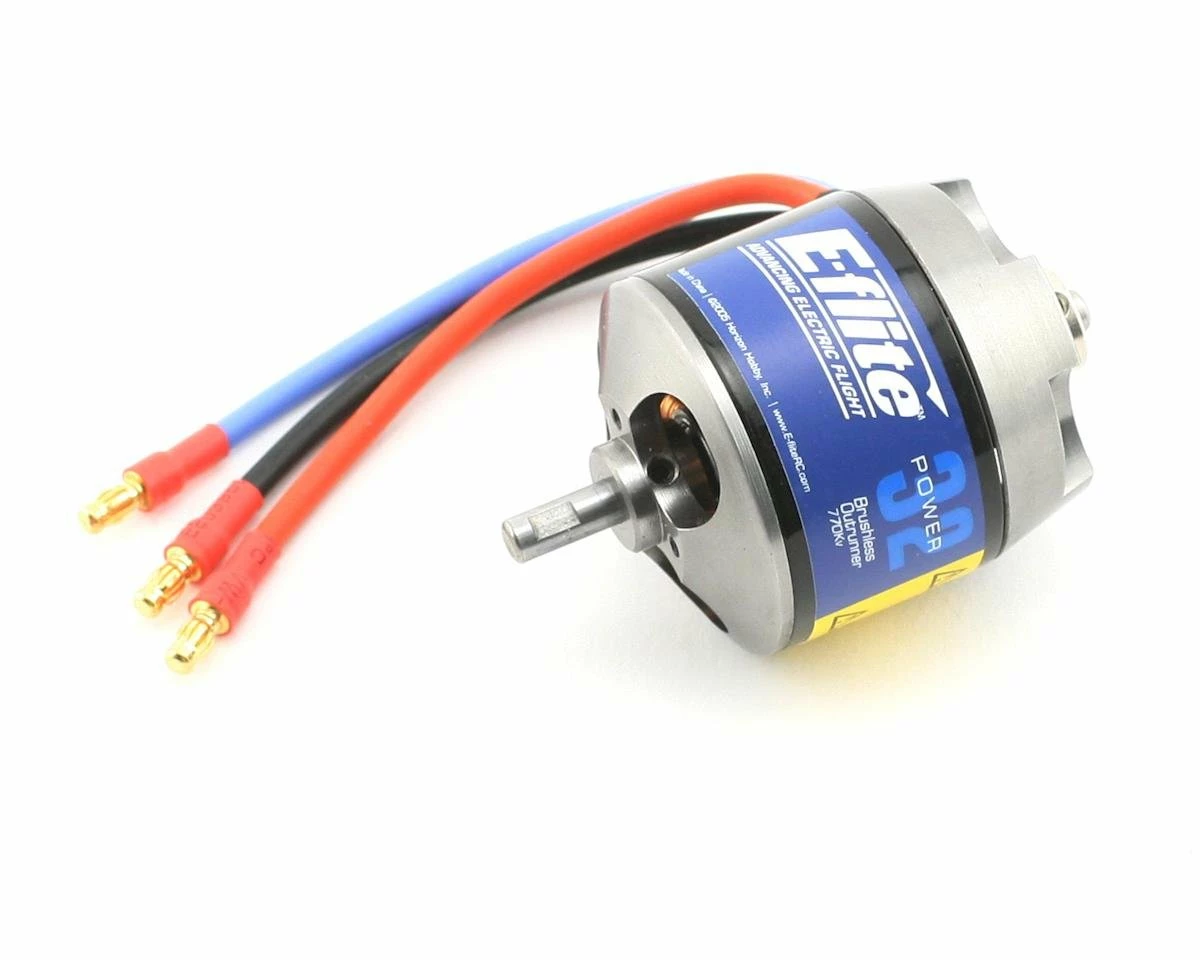

E-Flite Power 32 Brushless Outrunner Motor (770kV)

This is the E-flite Power 32 Brushless Outrunner Motor, 770 kV. The Power 32 is designed to deliver clean and quiet power for 30- to 36-size sport and scale airplanes weighing 3.5- to 6-pounds (1.6- to 2.7-kilograms) 25- to 36-size 3D airplanes up to 4.5-pounds (2-kilograms), or models requiring up to 700 watts of power. Its especially a good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the E3D.

Features

• Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5–6 lb (1.6–2.7 kg)
• Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
• Ideal for models requiring up to 700 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors

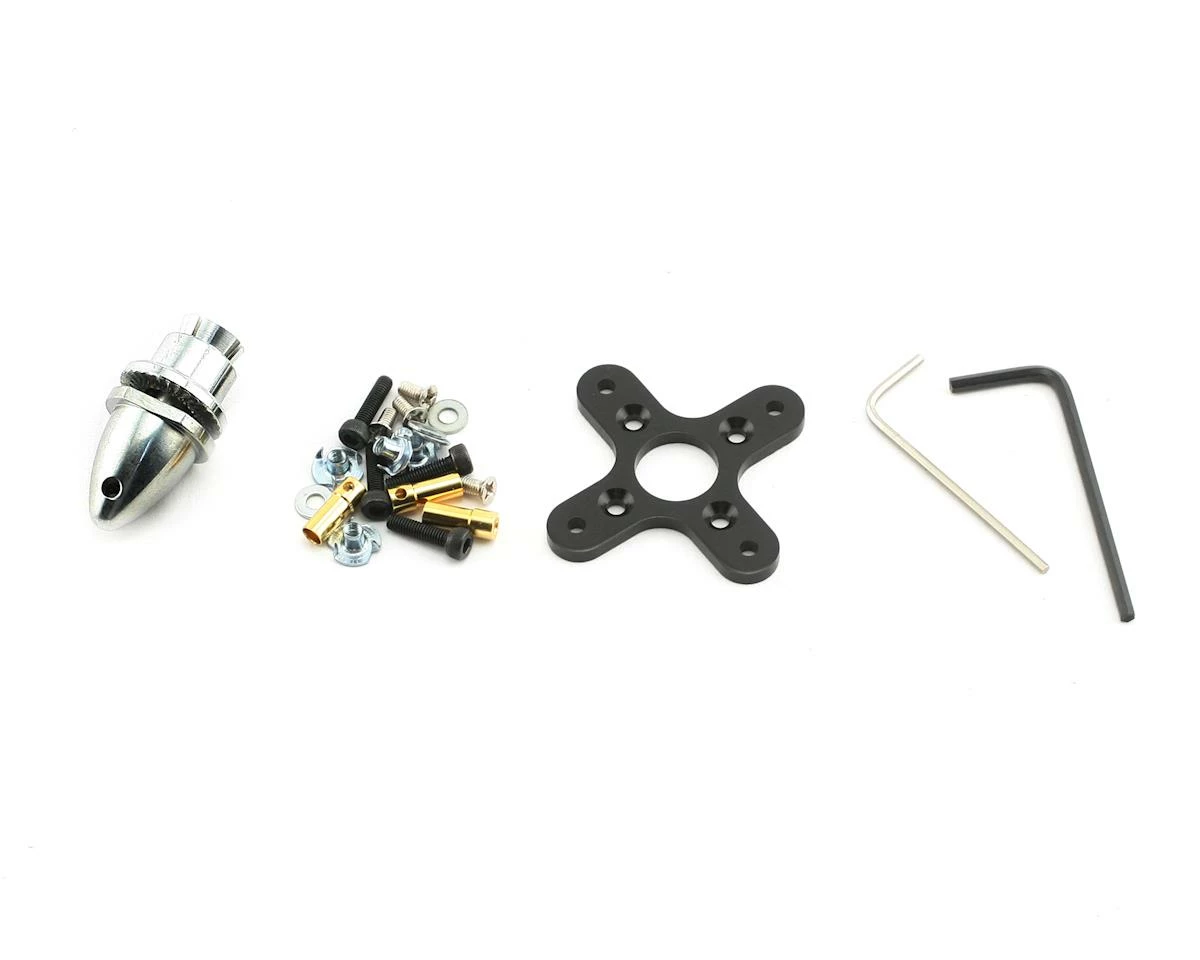

• Includes mount, prop adapter and mounting hardware
• Quite, lightweight operation
• External radial rotor design—5mm shaft can easily be reversed for alternative motor installations
• High-quality construction with ball bearings and hardened steel shaft
• Slotted 12-pole outrunner design

Specifications:
Type: Brushless Outrunner
Size: Replacement for a 30- to 32 size glow engine
Bearings or Bushings: Ball Bearings
Wire Gauge: 14
Recommended Prop Range: 11×7 to 14×10
Voltage: 12 – 16.8
RPM/Volt (Kv): 770
Resistance (Ri): .02 ohms
Idle Current (Io): 2.40A @ 10V
Continuous Current: 42A
Maximum Burst Current: 60A (15 sec)
Cells: 10-14 Ni-MH/Ni-Cd or 3-4S Li-Po
Speed Control: 60A Brushless
Weight: 200g (7.0 oz)
Overall Diameter: 42mm (1.70 in)
Shaft Diameter: 5mm (.20 in)
Overall Length: 50mm (1.90 in)

This product was added to our catalog on December 5, 2007
